FC-7000S — Forester forestry crane for loading and handling timber.
FC-7000S · 7000
Forest Cranes
FC-7000S Forestry Crane
- Boom outreach (max.) 7 m
- Payload capacity at max. outreach 900 kg
- Lifting torque (gross) 75 kNm
- Weight 825 kg
DESCRIPTION
Purpose
FC-7000S — Forester forestry crane for loading and handling timber.
Advantages
360° slewing for maximum manoeuvrability • High-strength steel for lower weight and longer service life • Protection of key components and hydraulic lines • Compatibility with Forester trailers
Application
Forestry attachments and components • Select by load, hydraulics and compatibility • System integration: crane + rotator + grapple
The FC-7000S is a hydraulic Forester forestry crane for loading and unloading timber. It offers a maximum outreach of 7.00 m, a lifting capacity of 900 kg at maximum outreach and full 360° slewing for accurate positioning in forestry conditions.
Built for demanding forestry work: high-strength construction, protected key components and hydraulic lines. The hydraulic system operates at 175 bar and is engineered for safe operation with overload protection (depending on configuration). Crane weight — 825 kg.
DESIGN HIGHLIGHTS
360° slewing for maximum manoeuvrability
High-strength steel for lower weight and longer service life
Protection of key components and hydraulic lines
Compatibility with Forester trailers

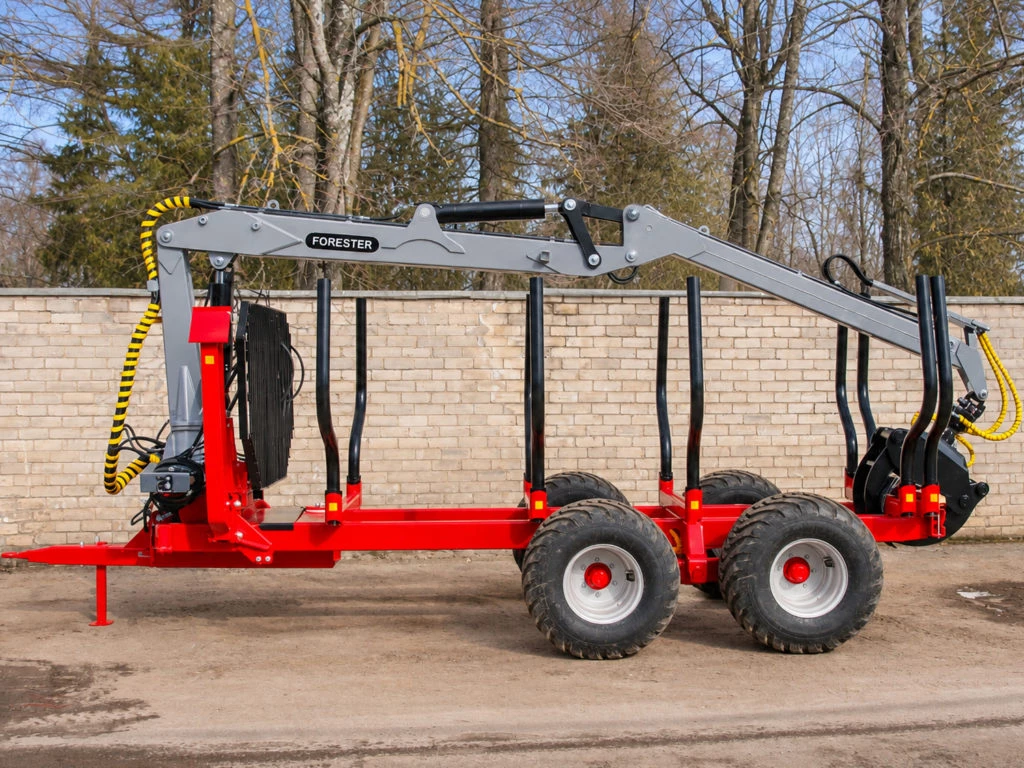

GALLERY
SPECIFICATIONS · FC-7000S FORESTRY CRANE
| Model | FC-7 000S |
|---|---|
| Payload capacity at max. outreach | 900 kg |
| Boom outreach (max.) | 7 m |
| Telescope outreach | 1.248 m |
| Slewing cylinders | 4 |
| Slewing angle | 360° |
| Max operating pressure | 175 bar |
| Slewing torque | 15 kNm |
| Lifting torque (gross) | 75 kNm |
| Booms | 2 |
| Weight | 825 kg |
COMPATIBLE EQUIPMENT & OPTIONS
Equipment & Options
PRODUCT FAQ
What are the reach and lifting capacity of the FC-7000S Forestry Crane?
The FC-7000S Forestry Crane provides an outreach of 900 and a lifting capacity of 900. The full specification is listed in the table on this page.
Which trailers can the crane be mounted on?
The crane mounts on Forester forestry trailers of matching capacity. We will recommend a trailer-and-crane configuration for your tractor.
Which grapple and rotator should I choose?
The crane works with Forester FG-series log grapples and hydraulic rotators. Grapple size is matched to the crane capacity and the timber you handle.
Does it have hydraulic brakes and support legs?
The standard equipment is listed in the specification table. Available options are shown in the Equipment & Options section; the exact configuration is confirmed with your request.
Will the equipment work with my tractor?
Forester equipment runs on the tractor's hydraulic system. Send us your tractor model and a description of the work — we will confirm compatibility and suggest a configuration.
How can I get a price for the FC-7000S Forestry Crane?
Use the request form on this page — we will reply with the price, available configuration and delivery terms.
What warranty applies to the equipment?
Forester equipment is covered by the manufacturer's warranty. The exact warranty and service terms are provided with your request.
Request form
Request price or configuration — we will respond and help you select the right setup.
CERTIFICATES & STANDARDS
CE
Equipment conforms to European Union safety and health directives.
ISO 9001
Manufacturing certified to ISO 9001 quality management standard.
Strenx 700 Steel
SSAB Strenx 700 high-strength steel — up to +40% strength at lower weight.
Made in European Union
Designed and manufactured in Estonia. Full material traceability.
