FC-950 — Forester forestry crane for loading and handling timber.
FC-950
Forest Cranes
FC-950 Loader Crane
- Max lifting capacity, t/m 48.4
- Max working radius, m 8.515
- Max operating pressure, bar 270
- Weight, kg 3 480
DESCRIPTION
Purpose
FC-950 — Forester forestry crane for loading and handling timber.
Advantages
Reliable design for heavy-duty operation • High productivity and precise handling • Compatible with Forester equipment ecosystem
Application
Forestry attachments and components • Select by load, hydraulics and compatibility • System integration: crane + rotator + grapple

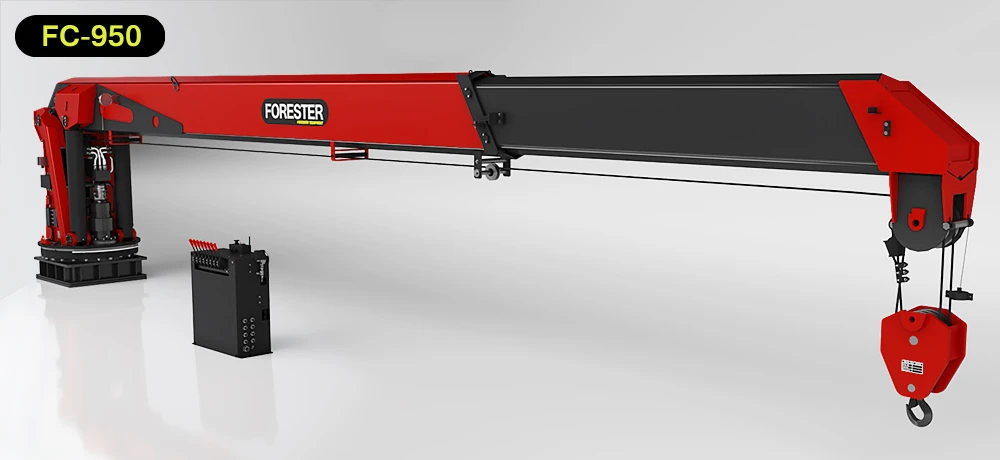

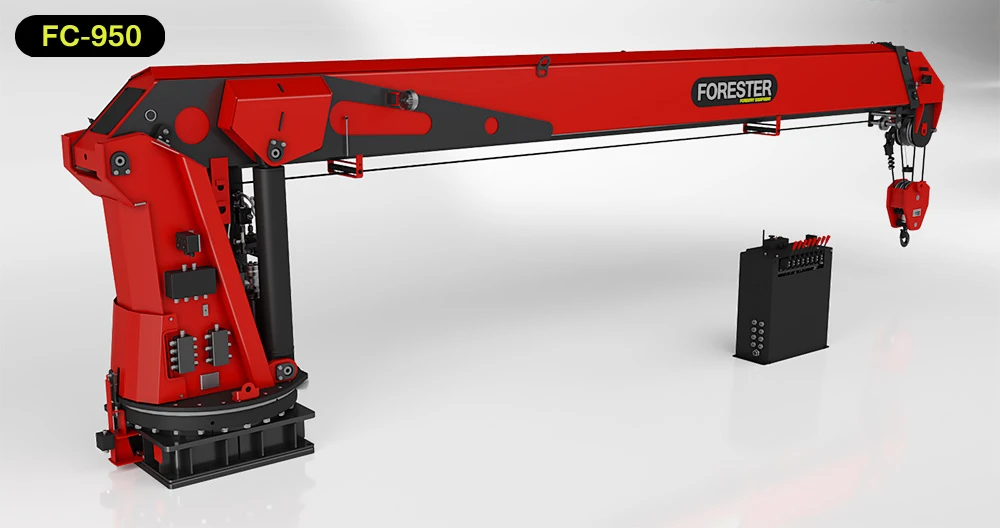

The FC-950 is a Forester loader crane (knuckleboom crane) for heavy-duty lifting operations, designed for intensive use with high demands on hydraulic reliability and construction.
Built for demanding forestry work: high-strength construction, protected key components and hydraulic lines. The hydraulic system operates at 270 bar and is engineered for safe operation with overload protection (depending on configuration). Crane weight — 3,480 kg.
GALLERY
Video

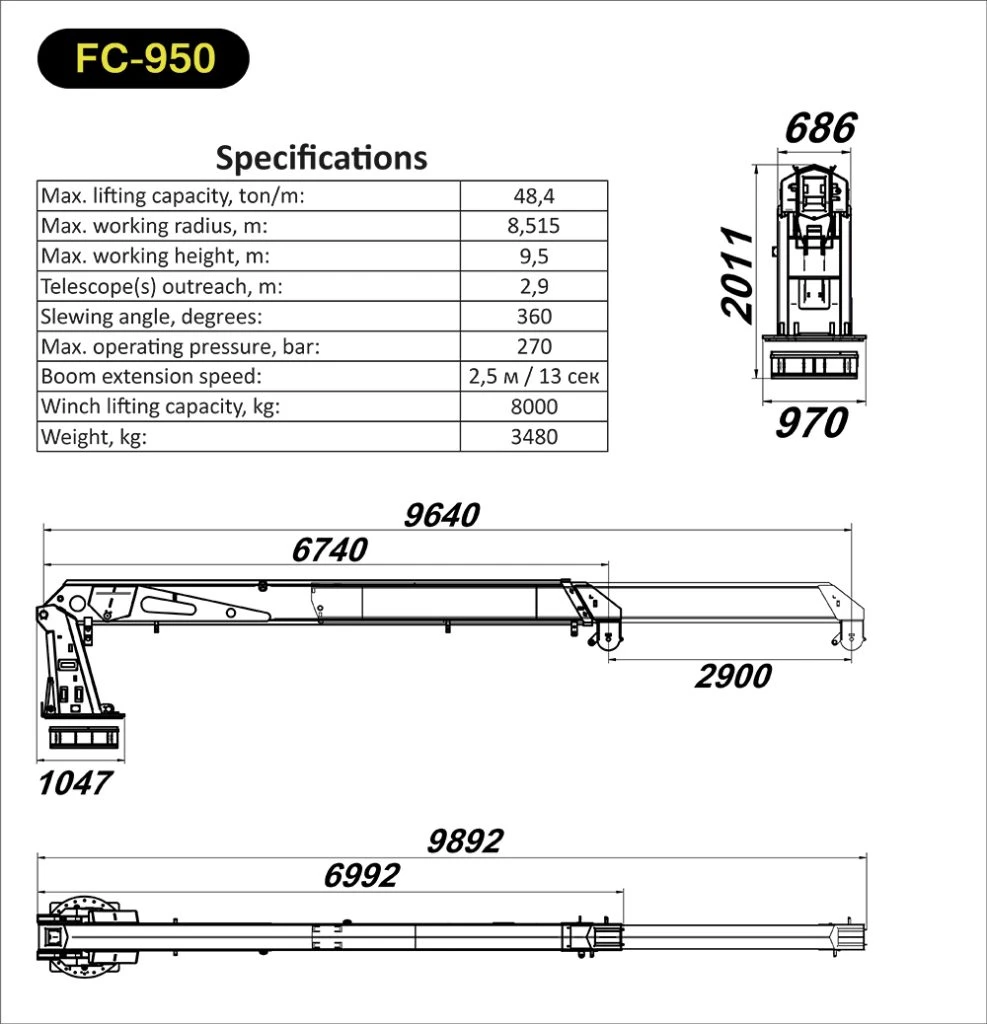

SPECIFICATIONS · FC-950 LOADER CRANE
| Model | FC-950 |
|---|---|
| Max lifting capacity, t/m | 48.4 |
| Max working radius, m | 8.515 |
| Max. working height, m | 9.5 |
| Telescope(s) outreach, m | 2.9 |
| Slewing angle, degrees | 360° |
| Max operating pressure, bar | 270 |
| Boom extension speed | 2.5 m / 13 sec |
| Winch lifting capacity, kg | 8 000 |
| Weight, kg | 3 480 |
COMPATIBLE EQUIPMENT & OPTIONS
Equipment & Options
PRODUCT FAQ
What are the reach and lifting capacity of the FC-950 Loader Crane?
The FC-950 Loader Crane provides an outreach of 2.9. The full specification is listed in the table on this page.
Which trailers can the crane be mounted on?
The crane mounts on Forester forestry trailers of matching capacity. We will recommend a trailer-and-crane configuration for your tractor.
Which grapple and rotator should I choose?
The crane works with Forester FG-series log grapples and hydraulic rotators. Grapple size is matched to the crane capacity and the timber you handle.
Does it have hydraulic brakes and support legs?
The standard equipment is listed in the specification table. Available options are shown in the Equipment & Options section; the exact configuration is confirmed with your request.
Will the equipment work with my tractor?
Forester equipment runs on the tractor's hydraulic system. Send us your tractor model and a description of the work — we will confirm compatibility and suggest a configuration.
How can I get a price for the FC-950 Loader Crane?
Use the request form on this page — we will reply with the price, available configuration and delivery terms.
What warranty applies to the equipment?
Forester equipment is covered by the manufacturer's warranty. The exact warranty and service terms are provided with your request.
Request form
Request price or configuration — we will respond and help you select the right setup.
CERTIFICATES & STANDARDS
CE
Equipment conforms to European Union safety and health directives.
ISO 9001
Manufacturing certified to ISO 9001 quality management standard.
Strenx 700 Steel
SSAB Strenx 700 high-strength steel — up to +40% strength at lower weight.
Made in European Union
Designed and manufactured in Estonia. Full material traceability.
