FT-20 — Forester forestry trailer for professional timber hauling and loading operations.
FT-20 · 20 t
Forest Trailers

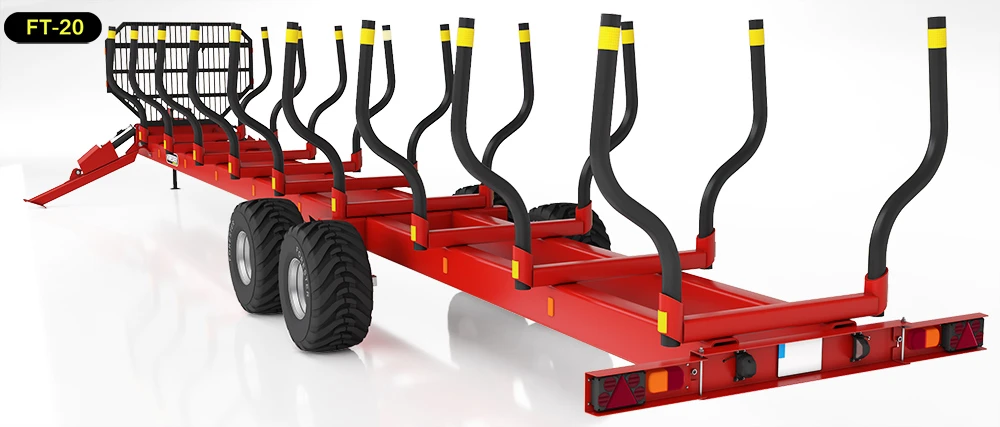

FT-20 Forestry Trailer
- Load capacity 20 000 kg
- Loading area length 11 130 mm
- Loading area 11.8 m²

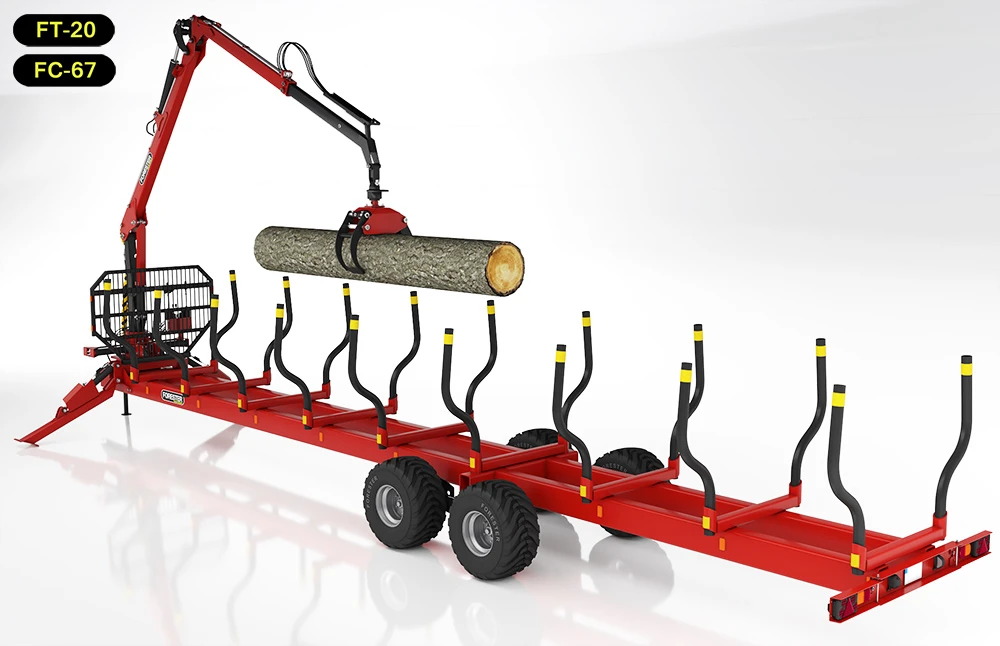

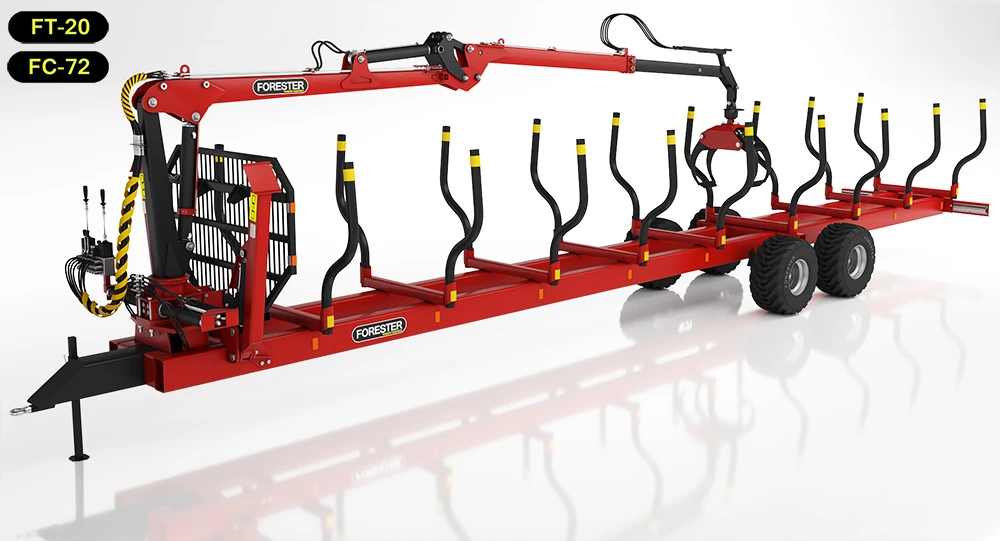

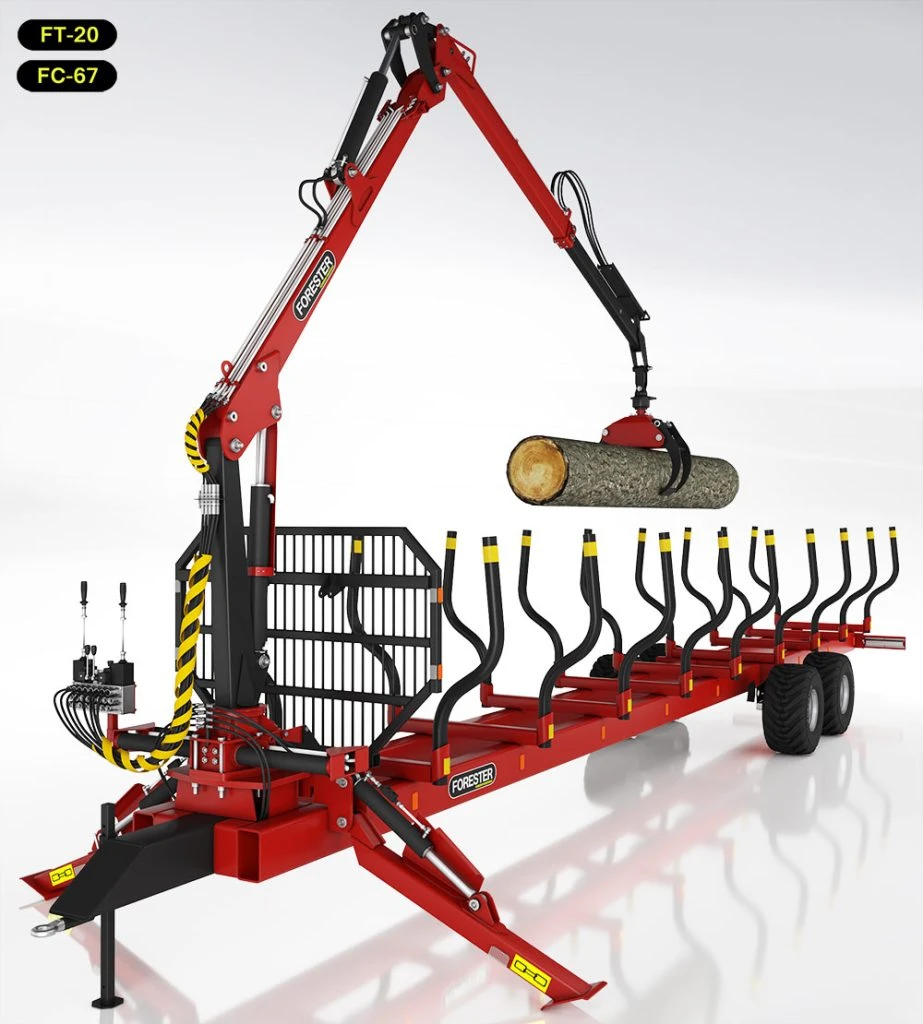

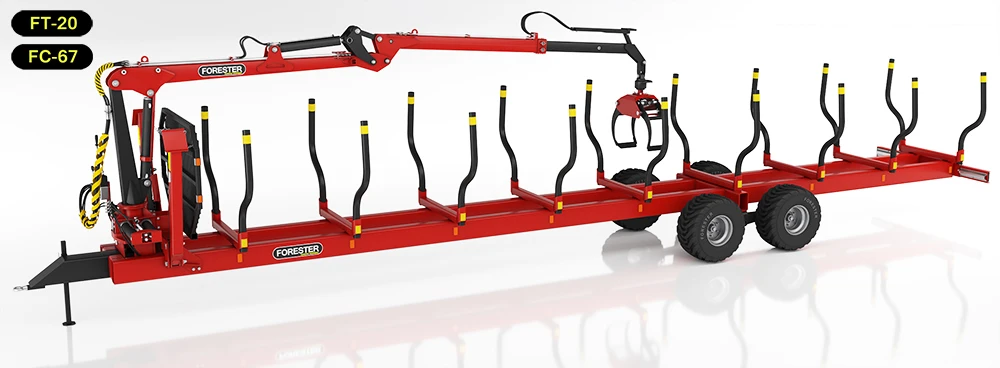

- Compatible Cranes FC-67, FC-72, FC-7000S, FC-85
DESCRIPTION
Purpose
FT-20 — Forester forestry trailer for professional timber hauling and loading operations.
Advantages
Reinforced frame for forestry conditions • Support legs and stability during loading • Compatibility with Forester FC-series cranes • Hydraulic and braking options (depending on configuration)
Application
Forestry attachments and components • Select by load, hydraulics and compatibility • System integration: crane + rotator + grapple
The FT-20 is a Forester forestry trailer for timber transport on forest and gravel roads. Its reinforced frame, support legs and compatibility with Forester FC-series cranes make it a reliable solution for professional use.
Key specifications: payload 20,000 kg, loading area 11.8 m², total length 12,910 mm. Options include different stabilizer solutions and, depending on configuration, hydraulic brakes or wheel drive for challenging terrain.
DESIGN HIGHLIGHTS
Reinforced frame for forestry conditions

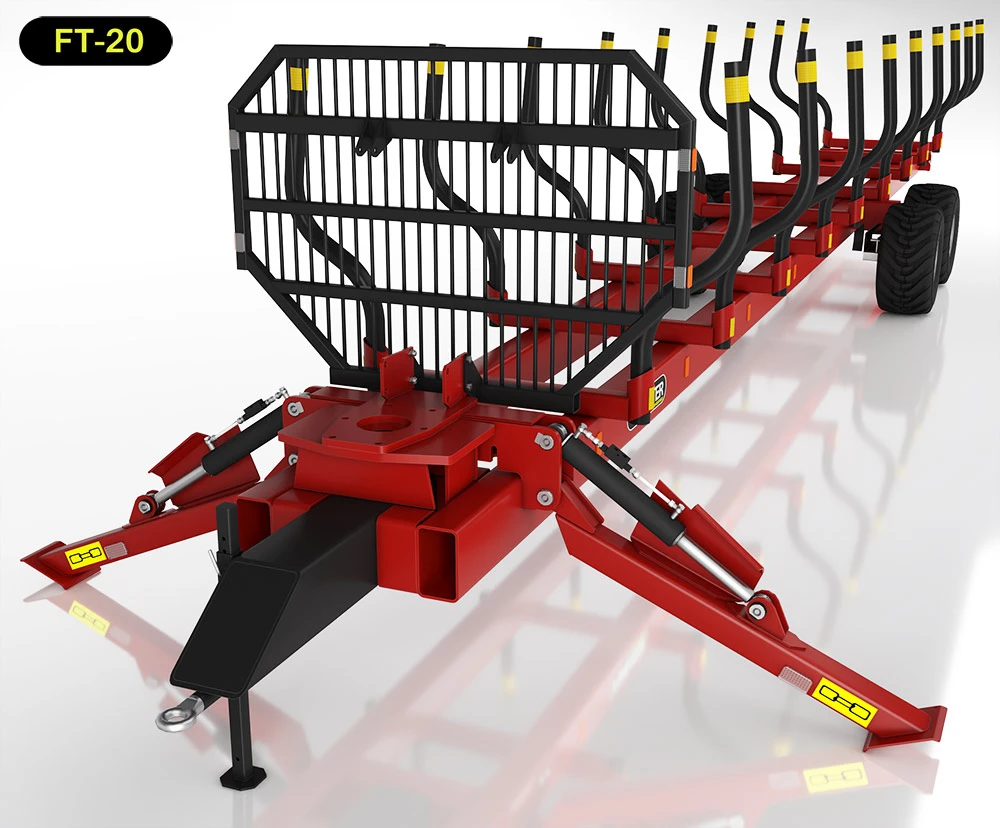

Support legs and stability during loading
Compatibility with Forester FC-series cranes
Hydraulic and braking options (depending on configuration)
GALLERY

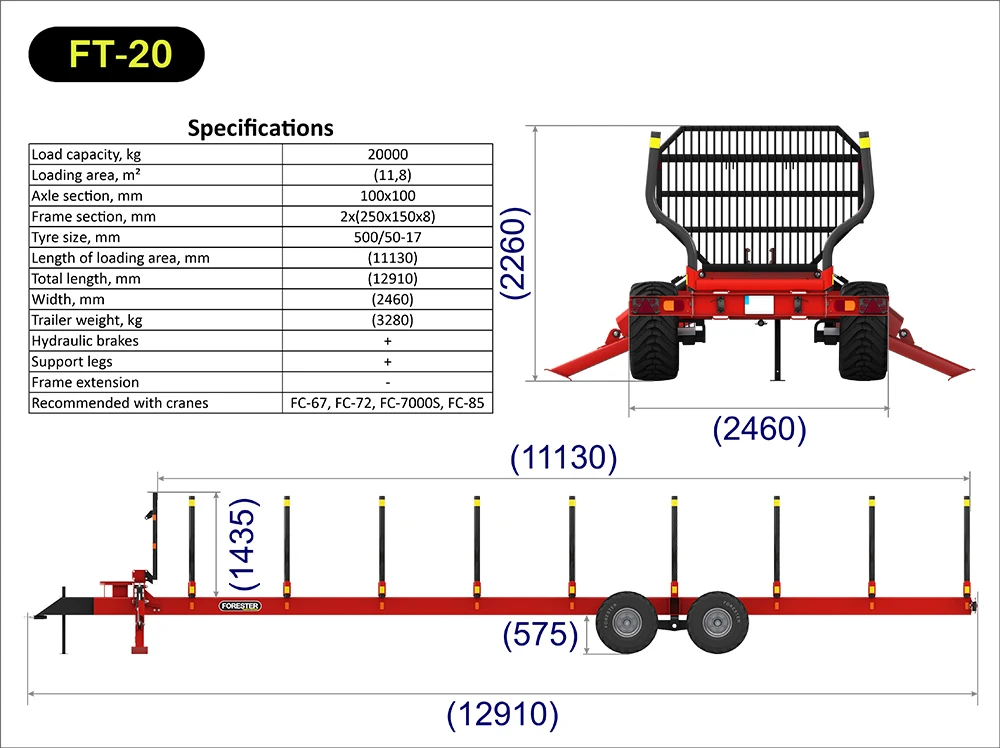

SPECIFICATIONS · FT-20 FORESTRY TRAILER
| Model | FT-20 |
|---|---|
| Load capacity | 20 000 kg |
| Loading area | 11.8 m² |
| Axle section | 100x100 mm |
| Frame section | 2x(250x150x8) |
| Tyre size | 500/50-17 |
| Length of loading area | 11 130 mm |
| Total length | 12 910 mm |
| Width | 2 460 mm |
| Trailer weight | 3 280 kg |
| Hydraulic brakes | + |
| Support legs | + |
| Frame extension | - |
| Recommended cranes | FC-67, FC-72, FC-7 000S, FC-85 |
COMPATIBLE EQUIPMENT & OPTIONS
Equipment & Options
PRODUCT FAQ
What is the payload and loading area of the FT-20 Forestry Trailer?
The FT-20 Forestry Trailer has a payload of 20 000, a loading area of 11.8. All dimensions and capacities are listed in the specification table on this page.
Which Forester cranes are compatible with the trailer?
The trailer is configured with Forester FC-series cranes. The recommended setup is: FC-67, FC-72, FC-7000S, FC-85. We will match the crane to your tractor and workload.
Does it have hydraulic brakes and support legs?
The standard equipment is listed in the specification table. Available options are shown in the Equipment & Options section; the exact configuration is confirmed with your request.
Will the equipment work with my tractor?
Forester equipment runs on the tractor's hydraulic system. Send us your tractor model and a description of the work — we will confirm compatibility and suggest a configuration.
How can I get a price for the FT-20 Forestry Trailer?
Use the request form on this page — we will reply with the price, available configuration and delivery terms.
What warranty applies to the equipment?
Forester equipment is covered by the manufacturer's warranty. The exact warranty and service terms are provided with your request.
Request a Quote
Interested in the FT-20 Forestry Trailer? Fill in the form and our specialists will contact you to calculate the cost and delivery times.
CERTIFICATES & STANDARDS
CE
Equipment conforms to European Union safety and health directives.
ISO 9001
Manufacturing certified to ISO 9001 quality management standard.
Strenx 700 Steel
SSAB Strenx 700 high-strength steel — up to +40% strength at lower weight.
Made in European Union
Designed and manufactured in Estonia. Full material traceability.
