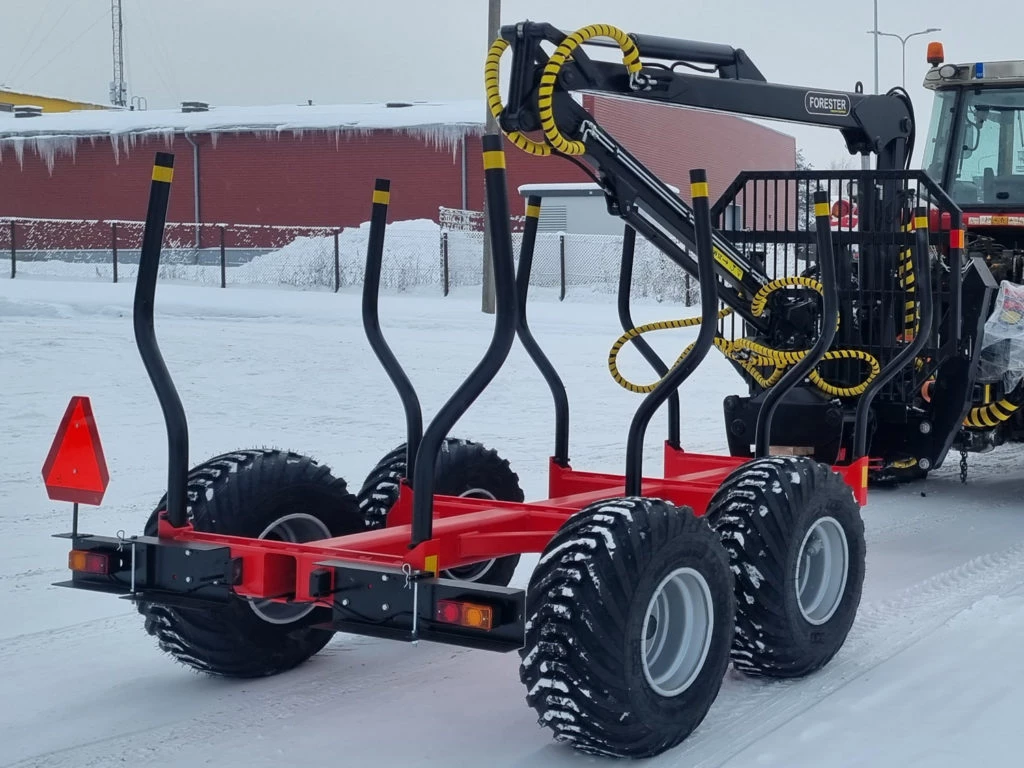

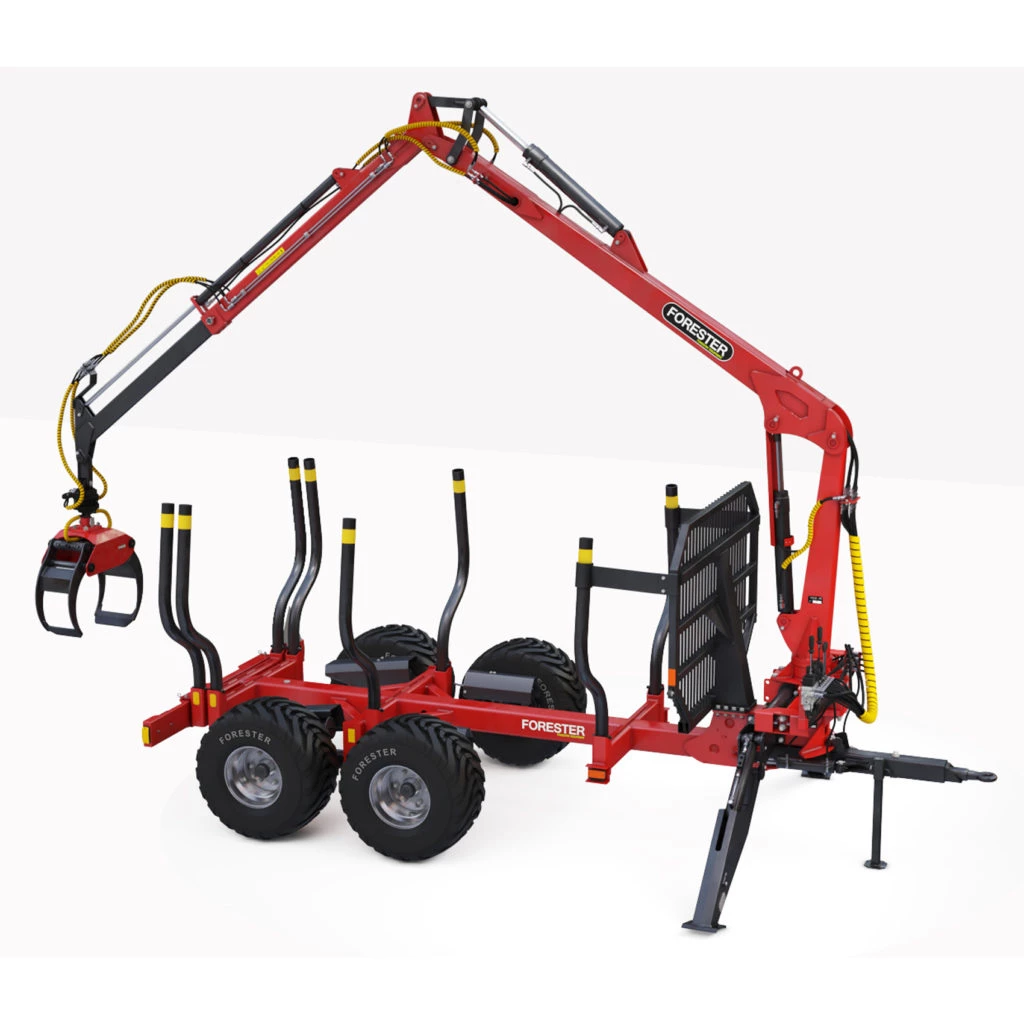

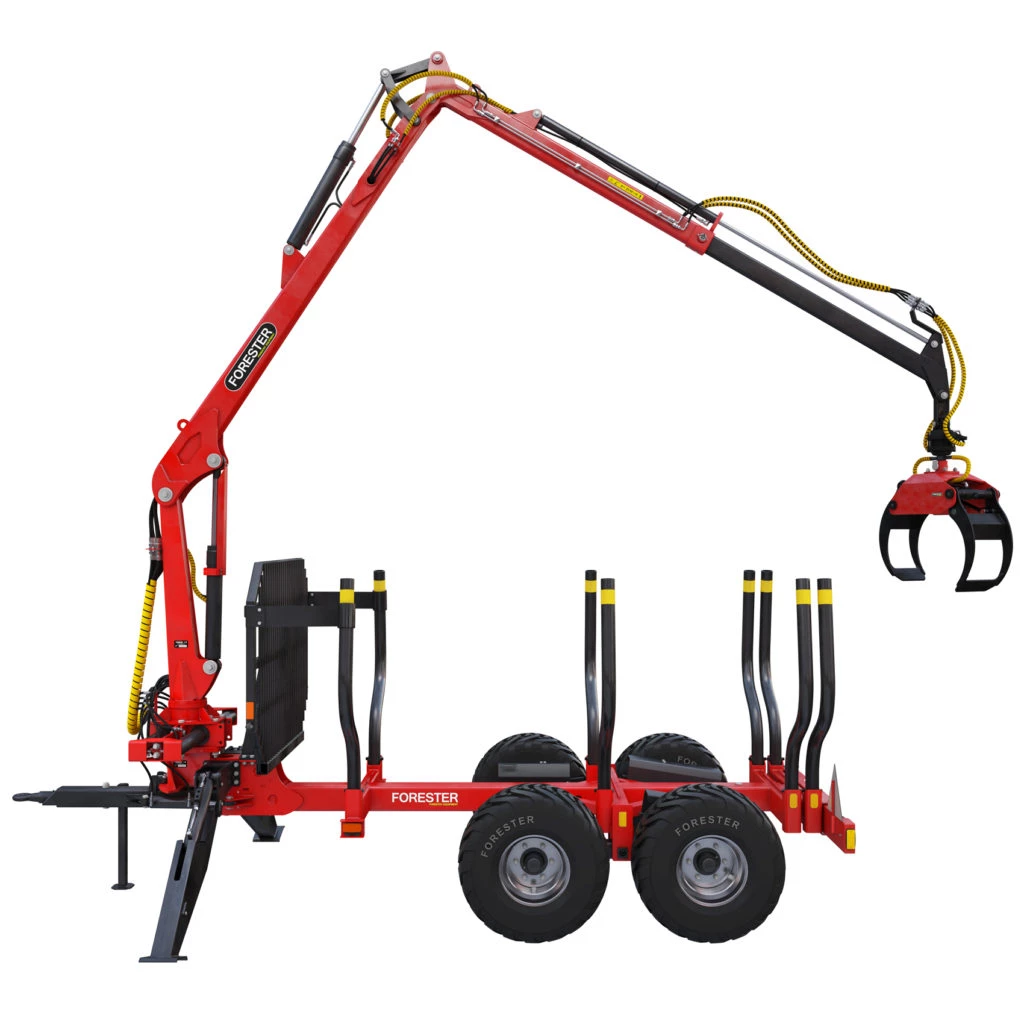

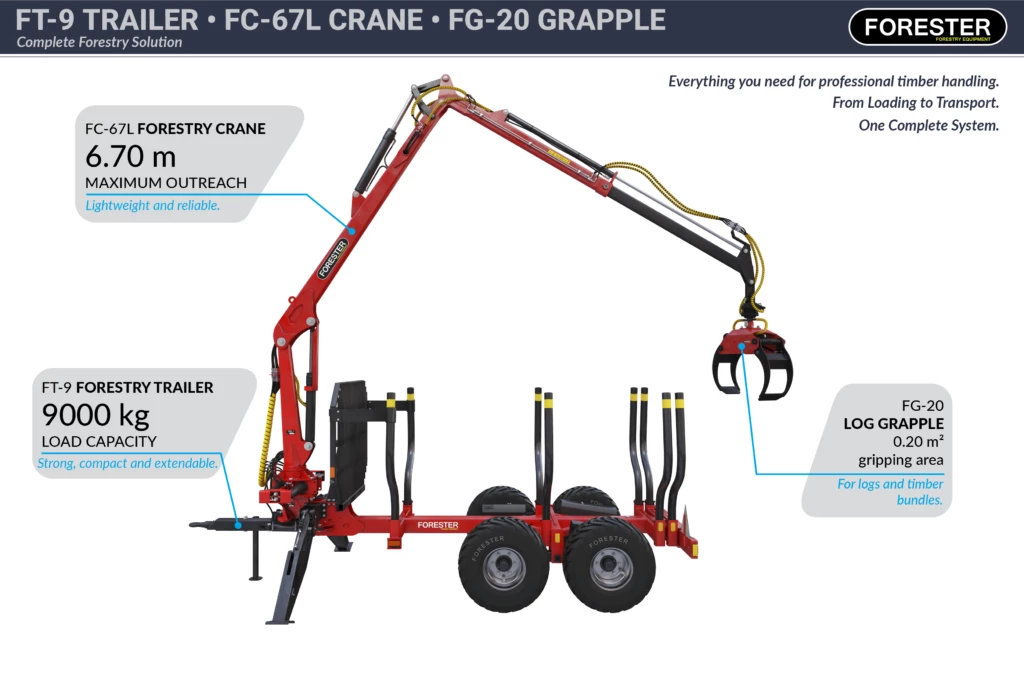

Set FT-9/FC-67L/FG-20
- Set FT-9 + FC-67L + FG-20
- Crane max. outreach 6.7 m
- Trailer payload 9 000 kg
- Capacity at full outreach 500 kg
- Gripping area 0.20 m²
- Set weight 2 125 kg
DESCRIPTION
Purpose
Advantages
Reliable design for heavy-duty operation • High productivity and precise handling • Compatible with Forester equipment ecosystem
Application
Forestry attachments and components • Select by load, hydraulics and compatibility • System integration: crane + rotator + grapple

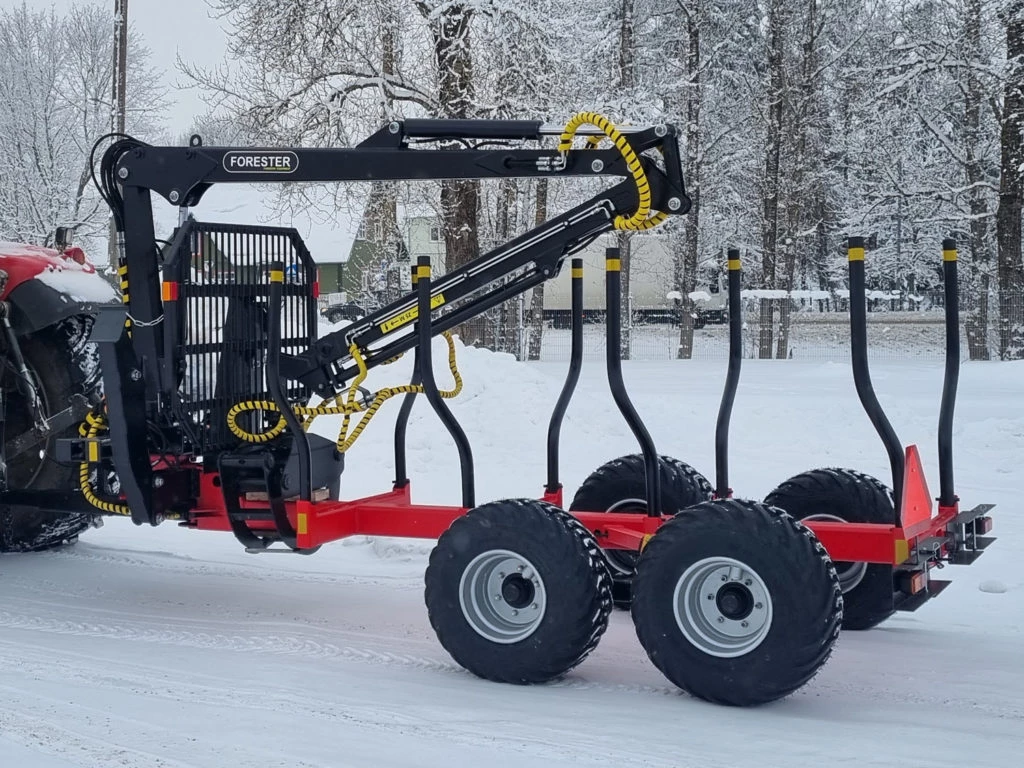

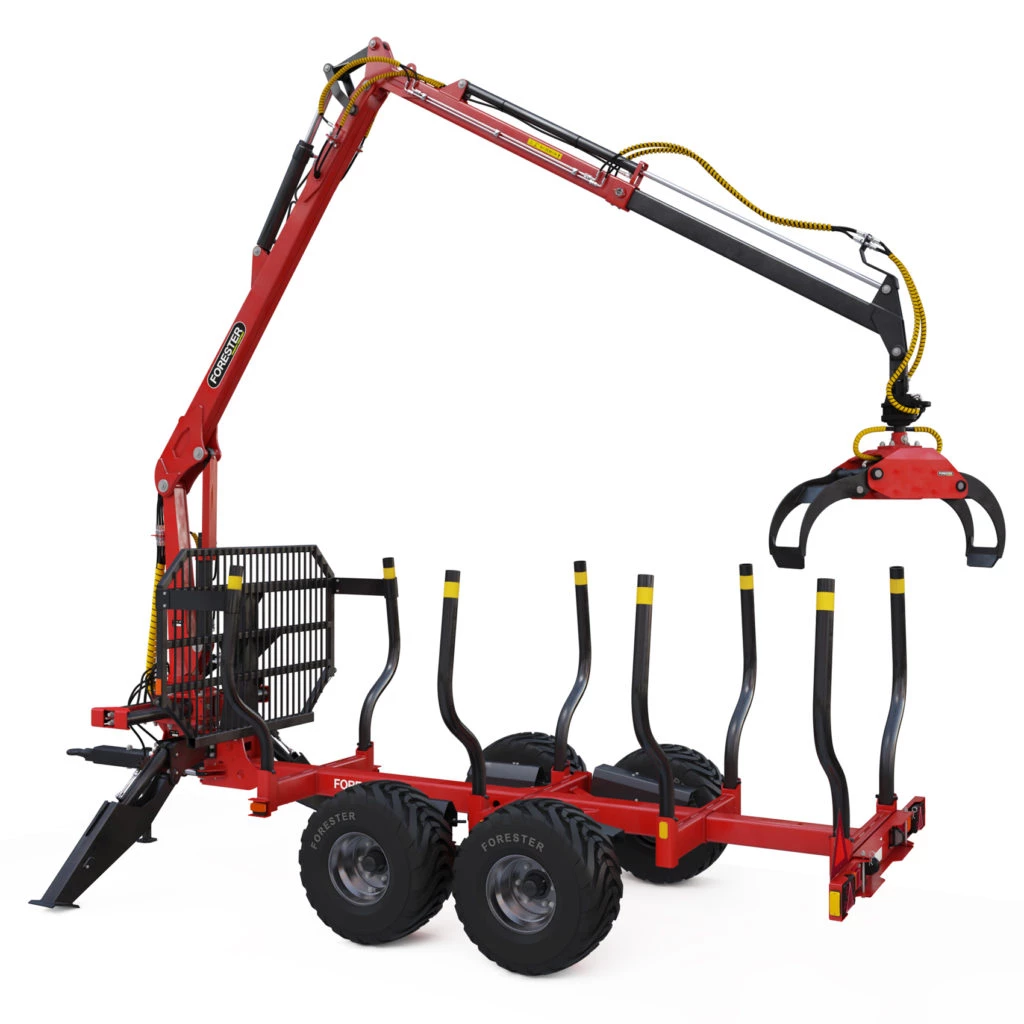

GALLERY
Video
SPECIFICATIONS · SET FT-9/FC-67L/FG-20

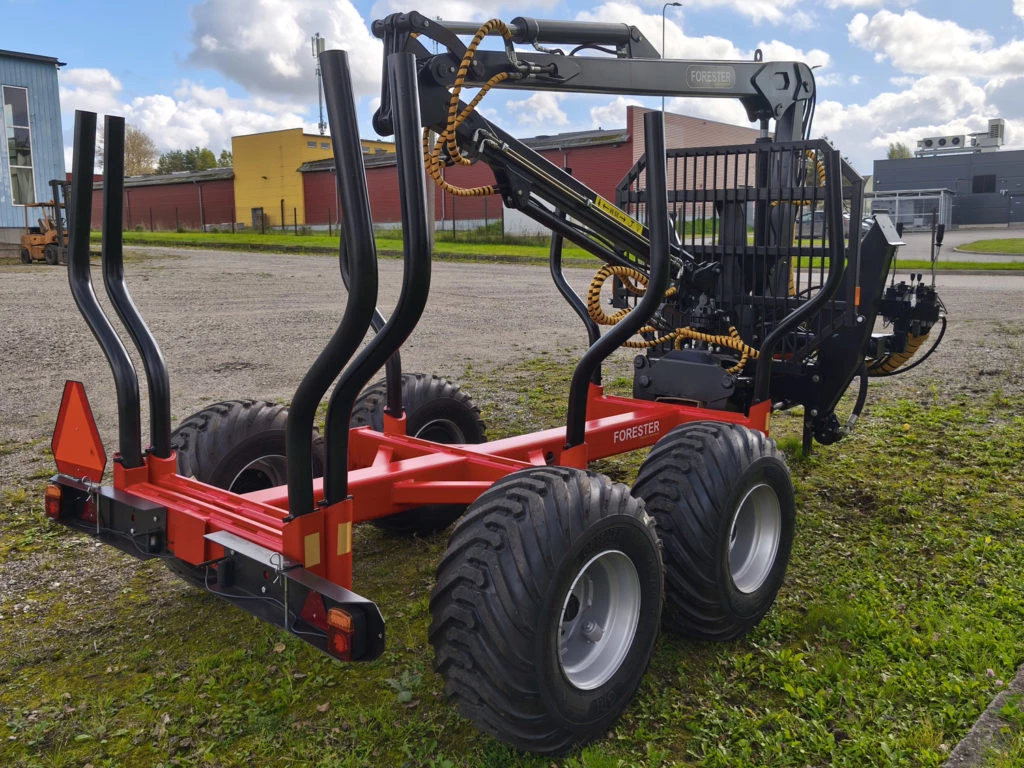

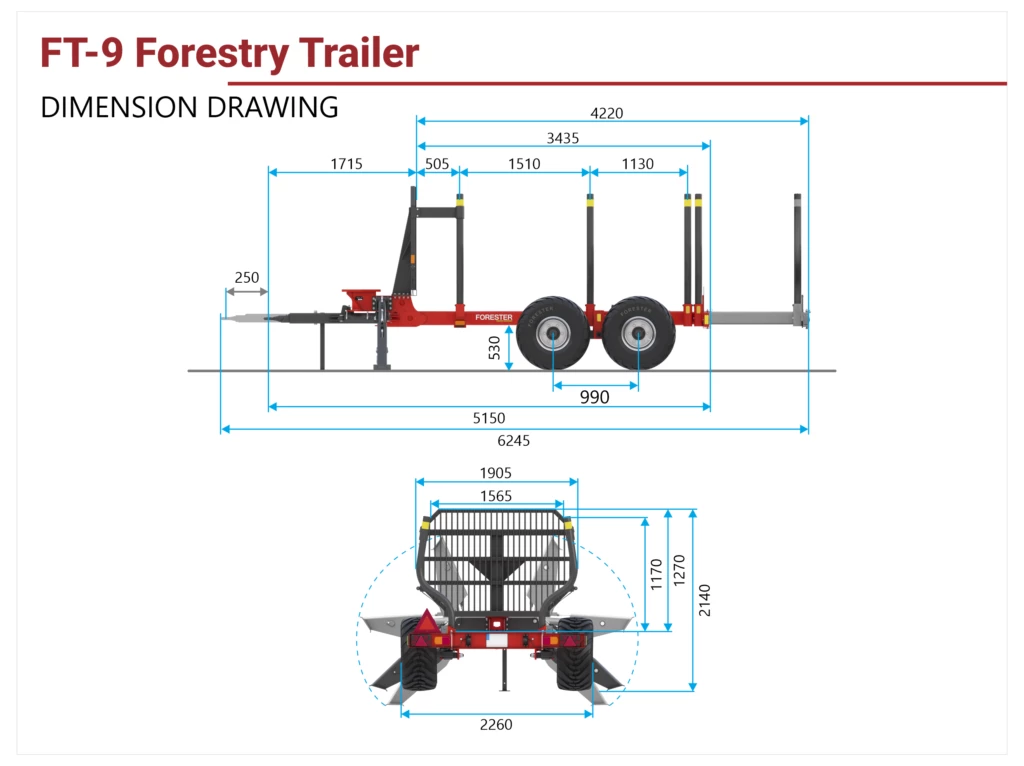

| Model | FT-9 trailer |
|---|---|
| Load capacity | 9 000 kg |
| Trailer weight | 1 450 kg |
| Loading area | 2.1 m² |
| Loading area length | 3 435 / 4 220 mm |
| Total length | 5 150 / 6 245 mm |
| Overall width | 2 260 mm |
| Ground clearance | 530 mm |
| Tyre size | 400 / 60-15.5 |
| Frame section | 160 x 160 x 8 mm |
| Axle section | 70 x 70 mm |
| Number of stake pairs | 3 / 4 |
| Support legs | + |
| Frame extension | option |
| Braking system | hydraulic or pneumatic |
| Recommended cranes | FC-53, FC-67L, FC-67 |

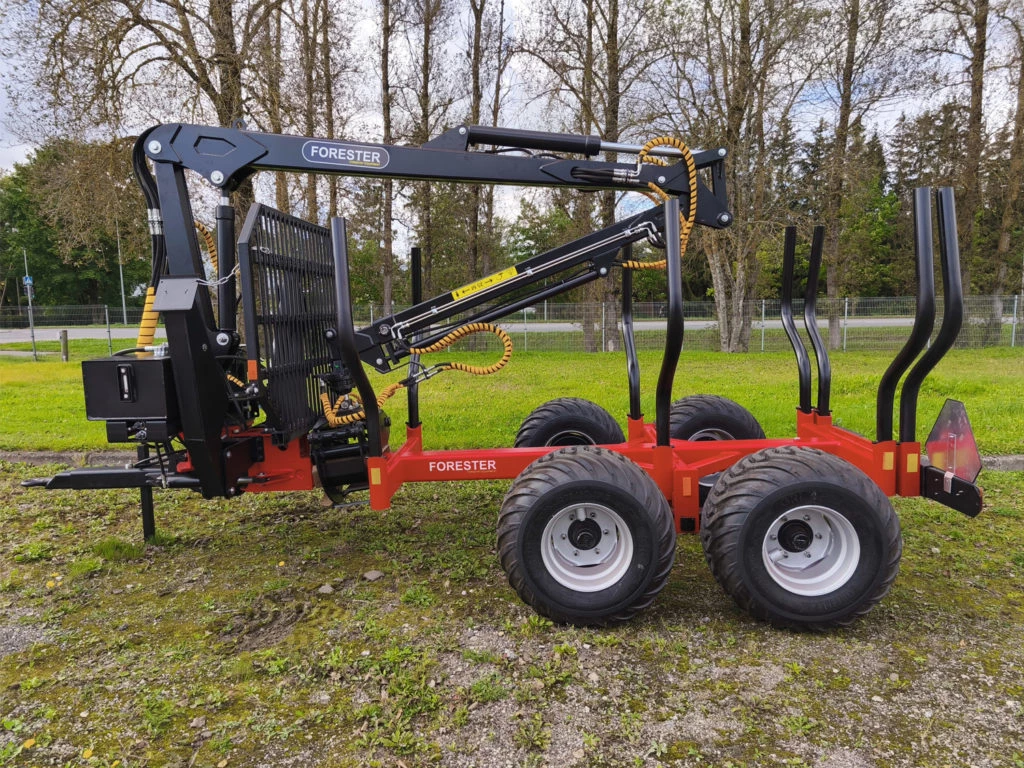

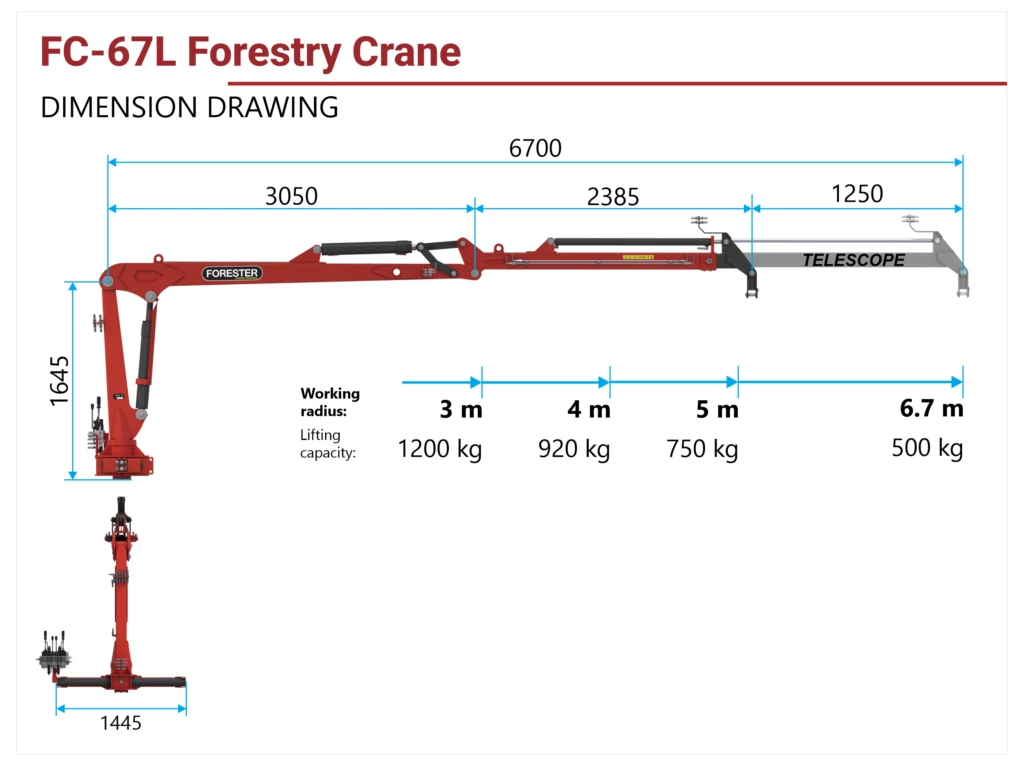

| Model | FC-67L crane |
| Capacity at maximum outreach | 500 kg |
| Boom outreach (max) | 6.685 m |
| Telescopic extension | 1.25 m |
| Gross lifting torque | 52 kNm |
| Slewing torque | 11.1 kNm |
| Slewing angle | 360° |
| Slewing cylinders | 4 |
| Max working pressure | 175 bar |
| Number of booms | 2 |
| Weight | 600 kg |

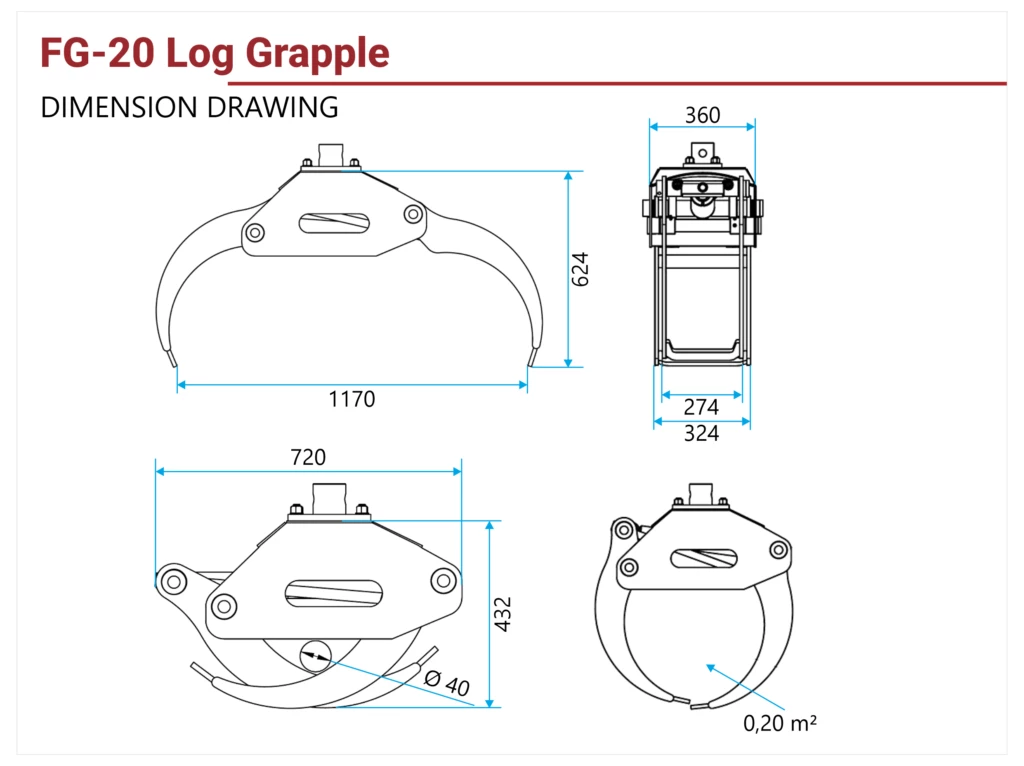

| Model | FG-20 grapple |
| Gripping area | 0.20 m² |
| Maximum opening | 1 170 mm |
| Height (closed) | 432 mm |
| Height (open) | 625 mm |
| Max permissible load | 1 100 kg |
| Min gripping diameter | 95 mm |
| Large claw width | 348 mm |
| Small claw width | 274 mm |
| House width | 360 mm |
| Max working pressure | 175 bar |
| Weight | 75 kg |
COMPATIBLE EQUIPMENT & OPTIONS
Equipment & Options
PRODUCT FAQ
What is the payload and loading area of the Set FT-9/FC-67L/FG-20?
The Set FT-9/FC-67L/FG-20 has a payload of 9 000, a loading area of 2.1. All dimensions and capacities are listed in the specification table on this page.
Which Forester cranes are compatible with the trailer?
The trailer is designed for Forester FC-series cranes — selected by required reach and lifting capacity.
Does it have hydraulic brakes and support legs?
The standard equipment is listed in the specification table. Available options are shown in the Equipment & Options section; the exact configuration is confirmed with your request.
Will the equipment work with my tractor?
Forester equipment runs on the tractor's hydraulic system. Send us your tractor model and a description of the work — we will confirm compatibility and suggest a configuration.
How can I get a price for the Set FT-9/FC-67L/FG-20?
Use the request form on this page — we will reply with the price, available configuration and delivery terms.
What warranty applies to the equipment?
Forester equipment is covered by the manufacturer's warranty. The exact warranty and service terms are provided with your request.
Request form
Request price or configuration — we will respond and help you select the right setup.
CERTIFICATES & STANDARDS
CE
Equipment conforms to European Union safety and health directives.
ISO 9001
Manufacturing certified to ISO 9001 quality management standard.
Strenx 700 Steel
SSAB Strenx 700 high-strength steel — up to +40% strength at lower weight.
Made in European Union
Designed and manufactured in Estonia. Full material traceability.
