Hydraulic log grapple for loading, unloading, sorting and stacking timber.
FC-53 Forestry Crane
FG-20 · 0.20 m²
Log Grapples
FG-20 Log Grapple
- Gripping area 0.20 m²
- Maximum opening 1 170 mm
- Weight 75 kg
- Operating pressure 175 bar
- Compatible Cranes FC-53, FC-67, FC-67L, FC-7000S, FC-85
COMPACT GRAPPLE FOR CONTROLLED TIMBER HANDLING
The Forester FG20 is a hydraulic log grapple developed for loading, unloading, sorting and stacking timber. It is suitable for handling individual logs, pulpwood, branches and compact timber bundles in forestry operations, farms and timber yards.
Its 0.20 m² gripping area and 1,170 mm maximum opening provide useful capacity without making the attachment unnecessarily heavy. The grapple weighs 75 kg, helping preserve the crane’s available lifting capacity, while its compact 432 mm closed height supports controlled handling around the trailer and timber stack. Operating pressure is 175 bar.
The FG20 can be paired with compatible Forester cranes and appropriately rated hydraulic rotators. The final configuration, including the rotator, connecting link or swing damper, hydraulic hoses and couplings, should be selected according to the crane capacity, mounting interface, hydraulic system, material being handled and working conditions.
DESIGN HIGHLIGHTS
PRACTICAL GRIPPING CAPACITY
A 0.20 m² gripping area provides practical capacity for handling individual logs, pulpwood and compact timber bundles.
WIDE 1,170 MM OPENING
Accommodates different log diameters and bundle sizes during loading, unloading, sorting and stacking.
LOW 75 KG WEIGHT
Limits attachment weight at the boom tip, leaving more of the crane's lifting capacity available for timber.
COMPACT CLOSED PROFILE
A closed height of 432 mm supports controlled handling close to the load, trailer bunks and timber stack.

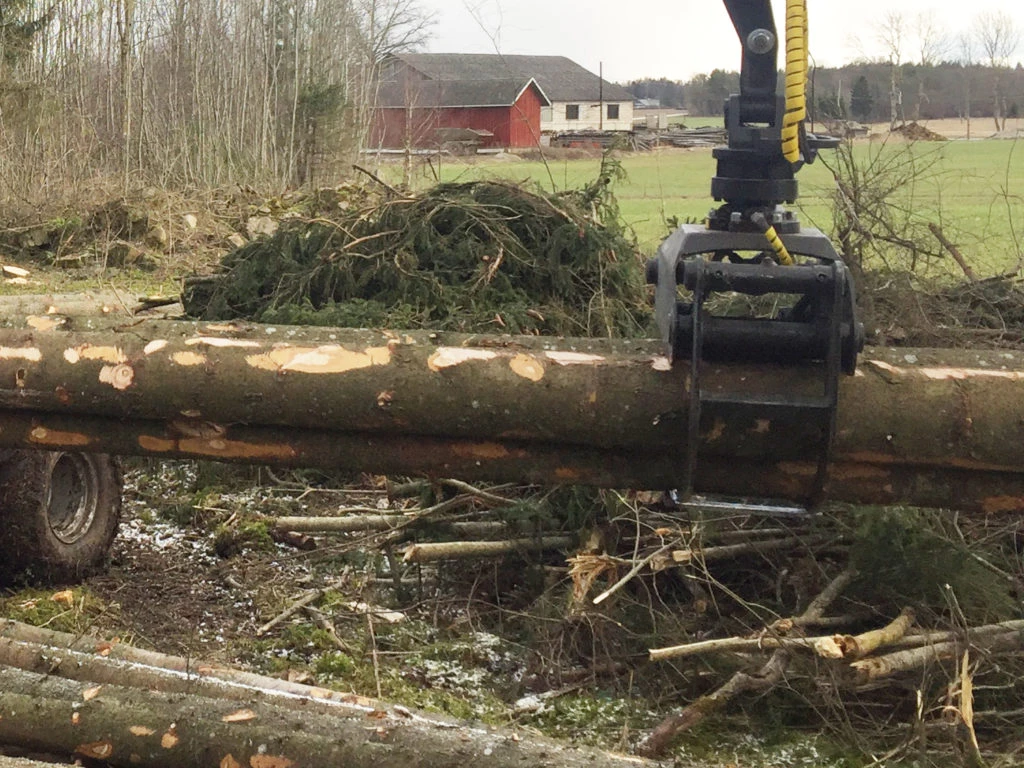

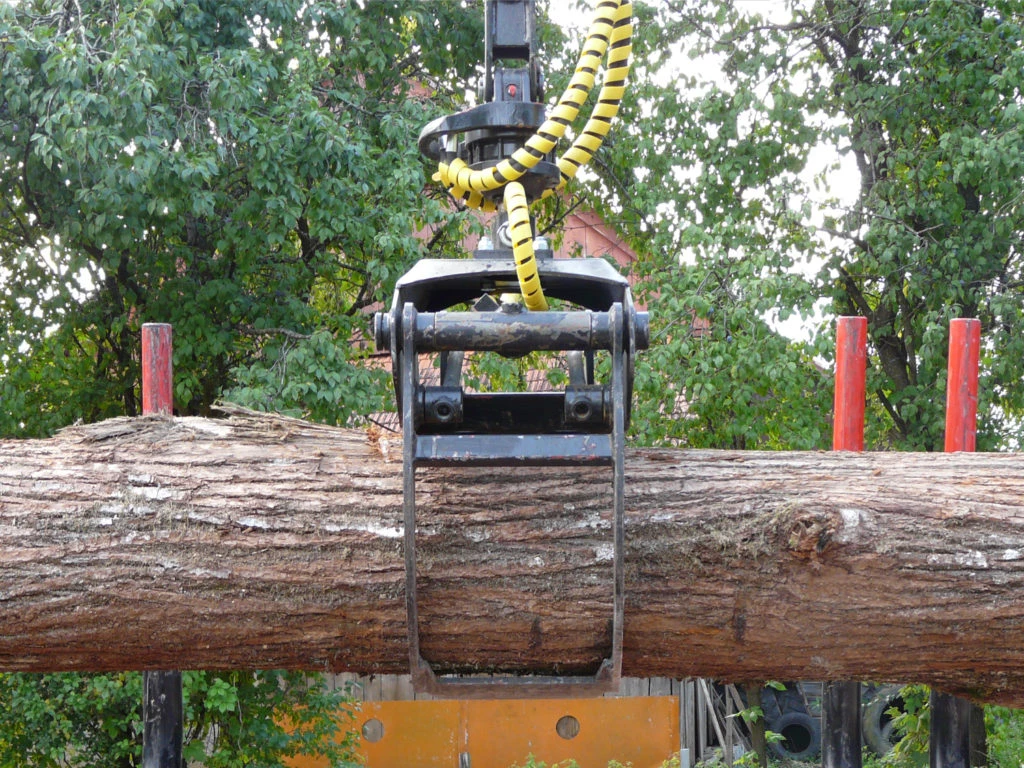

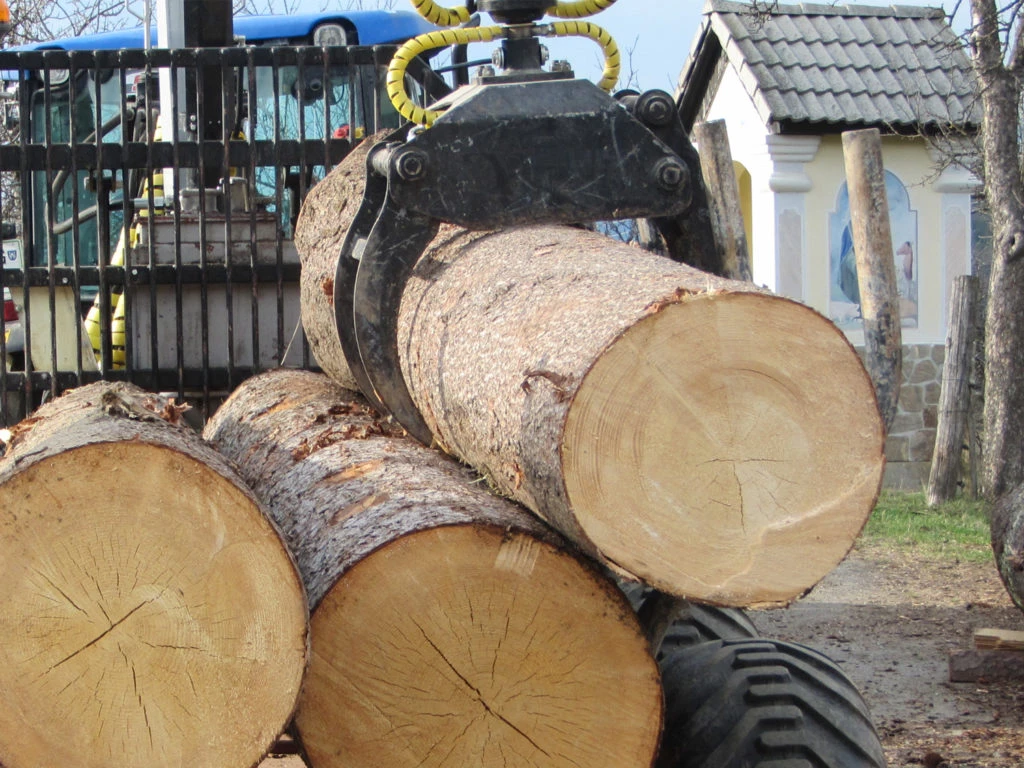

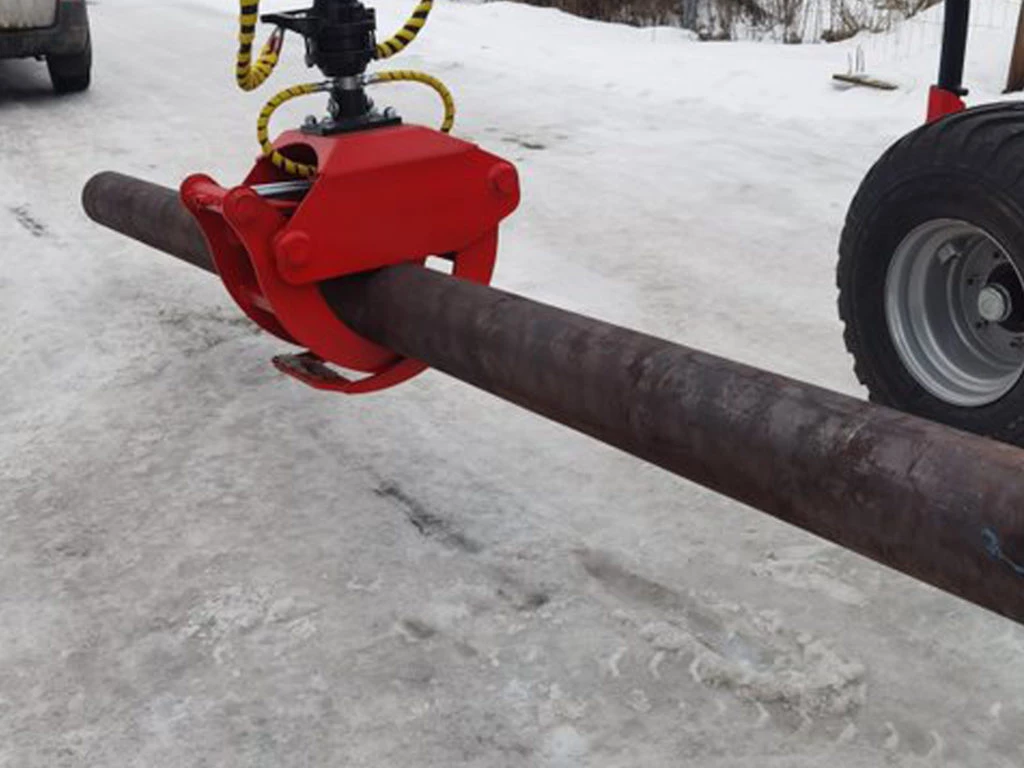

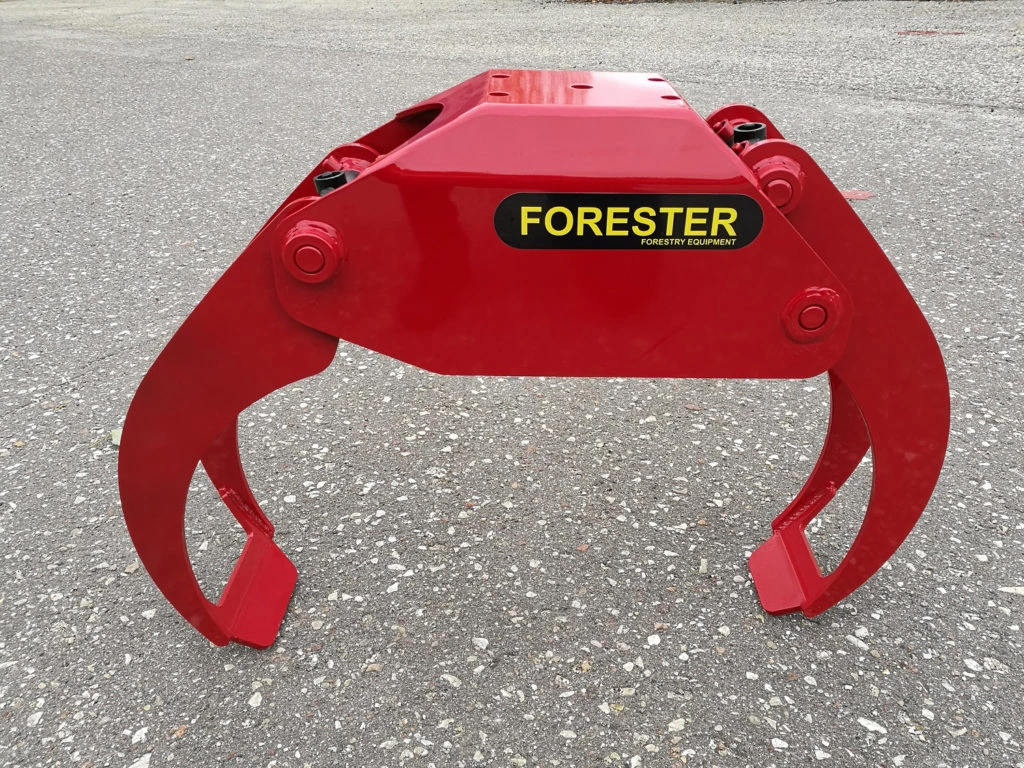

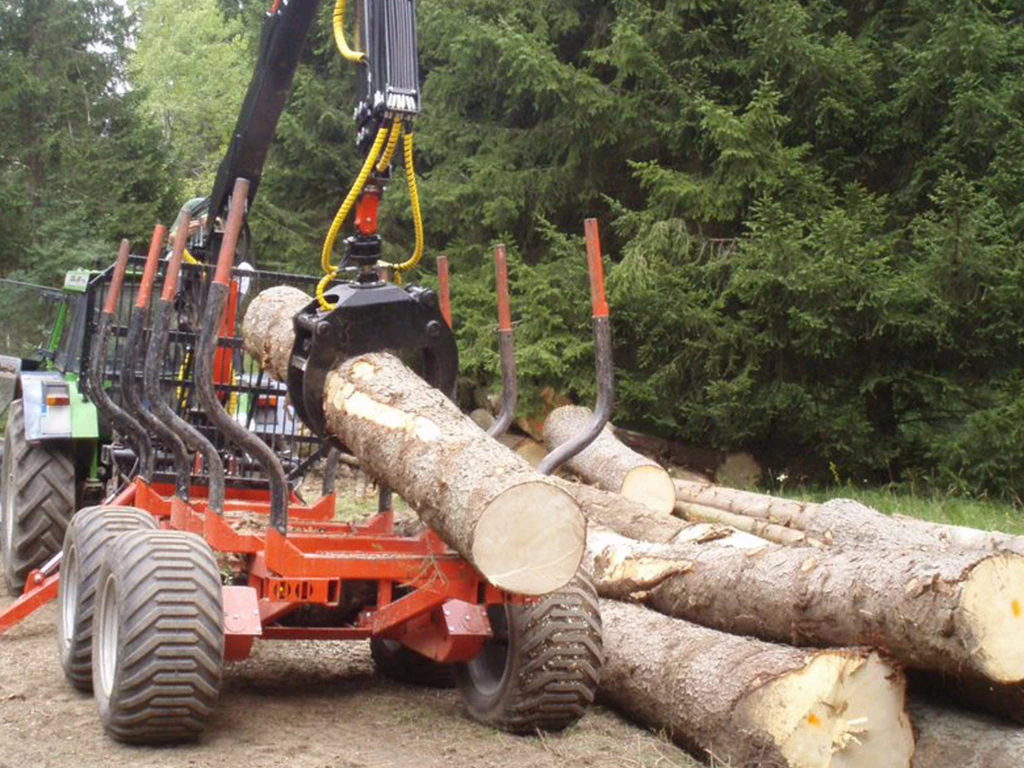

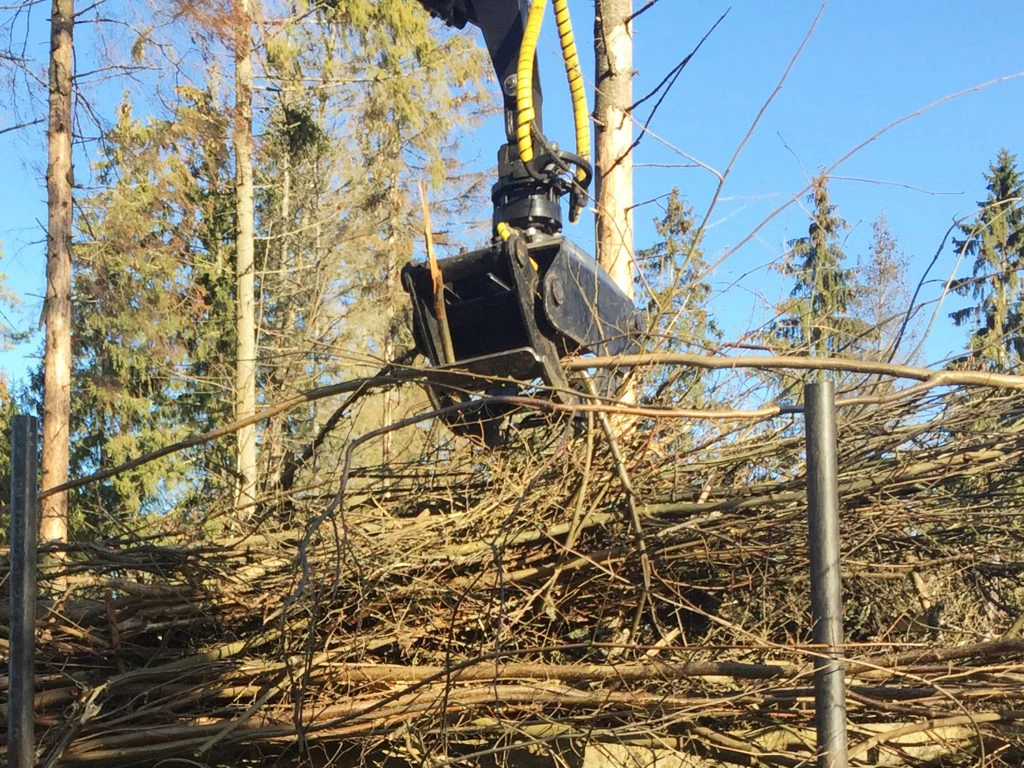

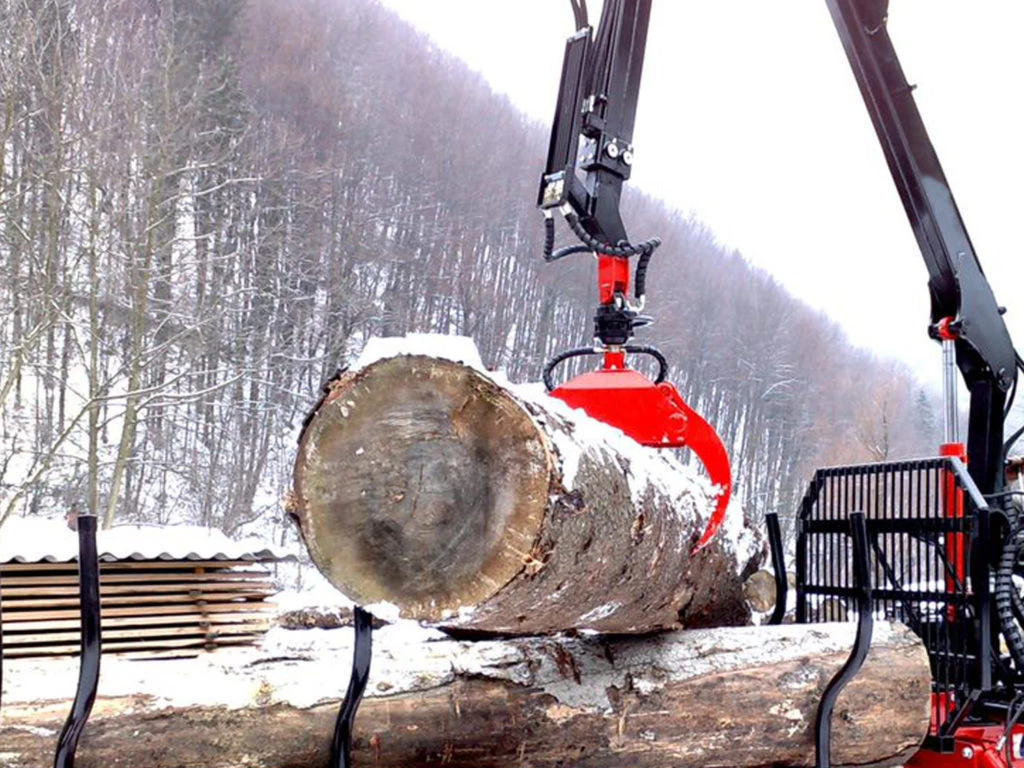

GALLERY
Video
3D model
Drag to rotate the model.

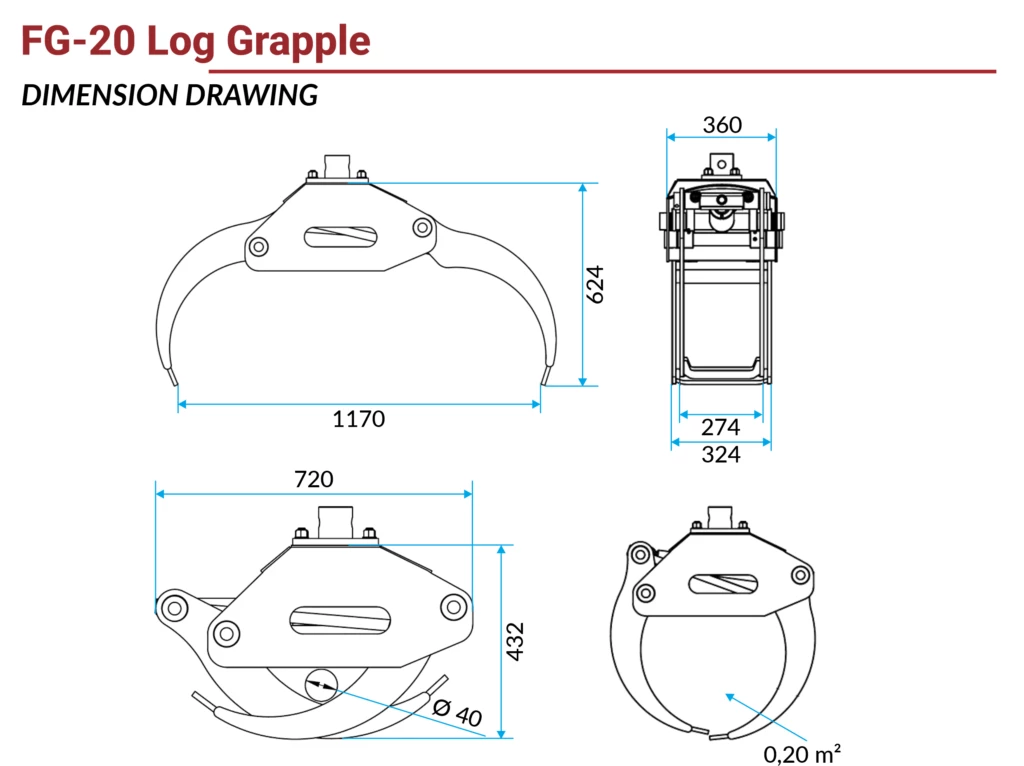

SPECIFICATIONS · FG-20 LOG GRAPPLE
| Model | FG-20 |
|---|---|
| Gripping area | 0.20 m² |
| Maximum opening | 1 170 mm |
| Closed height | 432 mm |
| Operating pressure | 175 bar |
| Weight | 75 kg |
COMPATIBLE EQUIPMENT & OPTIONS
Pairs with compatible Forester cranes and appropriately rated hydraulic rotators.
Compatible Cranes
Select by crane capacity and hydraulic system.
Compatible Rotators
Models to be confirmed by engineering.
Equipment & Options
PRODUCT FAQ
What are the gripping area and opening of the FG-20 Log Grapple?
The FG-20 Log Grapple has a gripping area of 0.20 m² and a maximum opening of 1 170 mm. The full specification is listed in the table on this page.
Which cranes and rotators is the grapple compatible with?
The grapple fits Forester FC-series cranes together with a hydraulic rotator rated for the crane capacity. We will match the grapple to your crane and workload.
Does it have hydraulic brakes and support legs?
The standard equipment is listed in the specification table. Available options are shown in the Equipment & Options section; the exact configuration is confirmed with your request.
Will the equipment work with my tractor?
Forester equipment runs on the tractor's hydraulic system. Send us your tractor model and a description of the work — we will confirm compatibility and suggest a configuration.
How can I get a price for the FG-20 Log Grapple?
Use the request form on this page — we will reply with the price, available configuration and delivery terms.
What warranty applies to the equipment?
Forester equipment is covered by the manufacturer's warranty. The exact warranty and service terms are provided with your request.
Request a Quote
Interested in the FG-20 Log Grapple? Fill in the form and our specialists will contact you to calculate the cost and delivery times.
