Compact forestry crane with a 5.30 m outreach and 700 kg lifting capacity at maximum outreach.
FT-7 Forestry Trailer
FC-53 · 5300
Forest Cranes
FC-53 Forestry Crane
- Maximum outreach 5.30 m
- Capacity at max. outreach 700 kg
- Gross lifting torque 44 kNm
- Crane weight 550 kg
COMPACT REACH FOR EVERYDAY TIMBER HANDLING
The FC53 is a compact single-boom hydraulic forestry crane designed for loading, unloading and handling timber. Its 5.30 m outreach and 700 kg capacity at maximum outreach make it a practical choice for smaller and medium-capacity forestry trailer configurations.
Four hydraulic slewing cylinders provide 11.1 kNm of slewing torque across a full 360° slewing angle. With a gross lifting torque of 44 kNm and a crane weight of 550 kg, the FC53 can be configured with compatible Forester trailers, grapples, rotators and control systems to suit the tractor and working conditions.
DESIGN HIGHLIGHTS
700 KG AT MAXIMUM OUTREACH
The FC53 retains a lifting capacity of 700 kg at its full 5.30 m outreach.
FULL 360° WORKING RANGE
Four hydraulic slewing cylinders allow the crane to operate throughout a complete 360° slewing angle.
44 KNM GROSS LIFTING TORQUE
A gross lifting torque of 44 kNm provides practical performance for everyday timber loading and handling.
550 KG CRANE WEIGHT
The crane combines useful lifting capacity with a weight of 550 kg, an important consideration when matching it to a trailer and tractor.

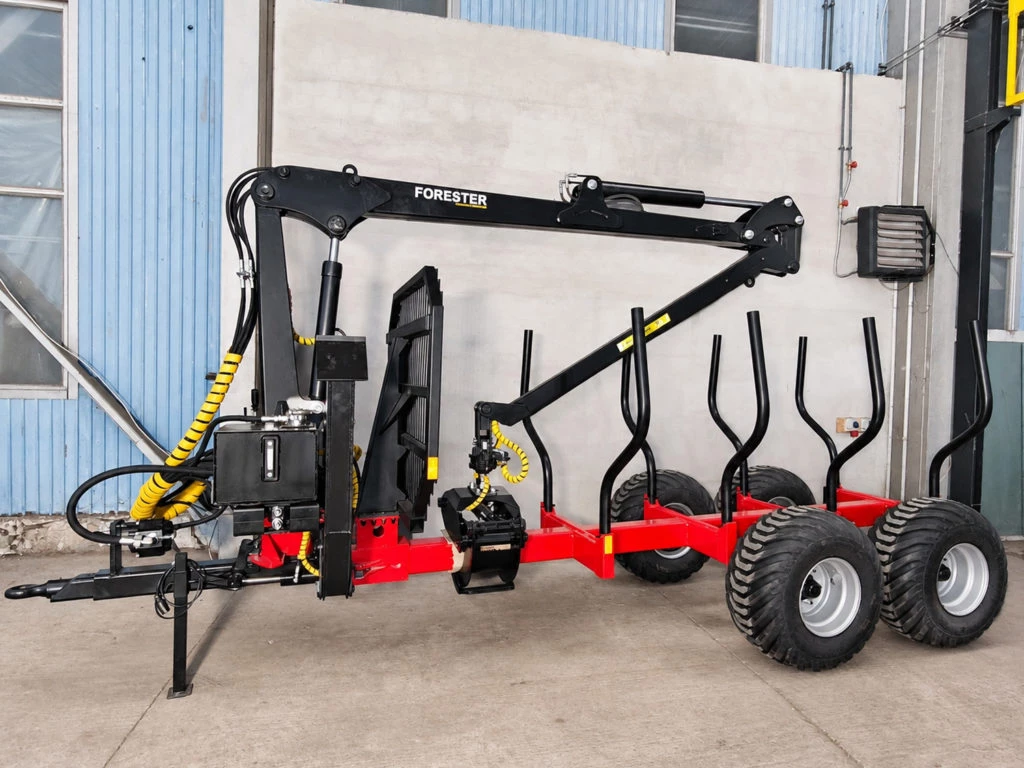

GALLERY

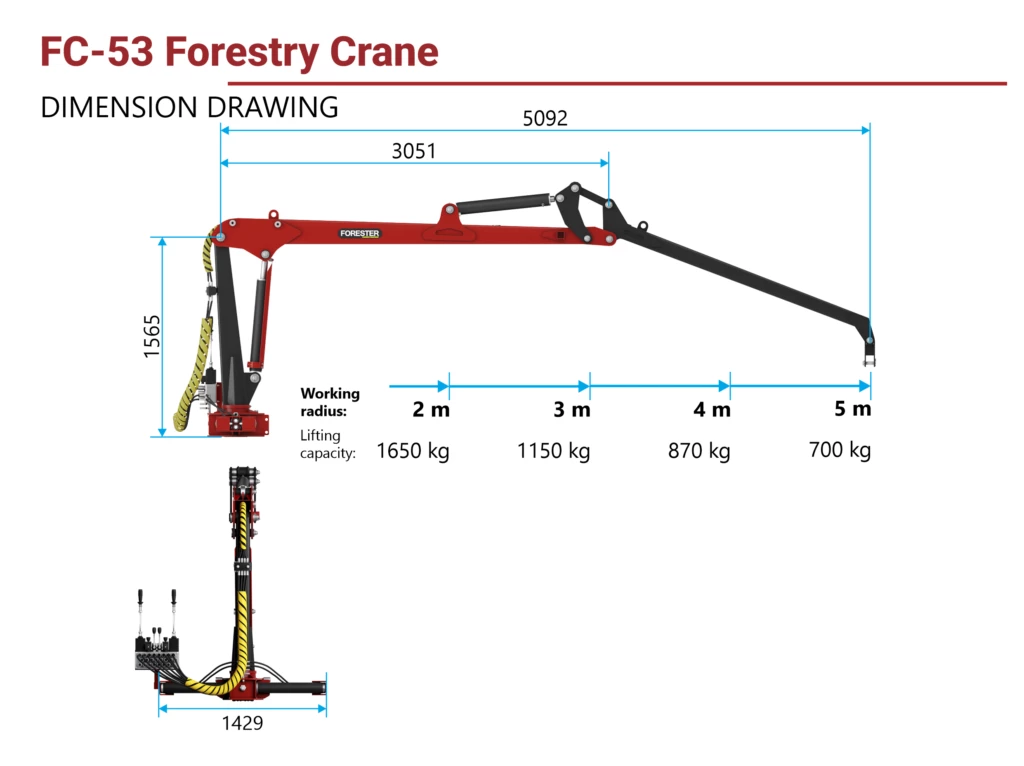

SPECIFICATIONS · FC-53 FORESTRY CRANE
| Model | FC-53 |
|---|---|
| Maximum outreach | 5.30 m |
| Capacity at maximum outreach | 700 kg |
| Gross lifting torque | 44 kNm |
| Slewing torque | 11.1 kNm |
| Slewing angle | 360° |
| Slewing cylinders | 4 |
| Operating pressure | 175 bar |
| Telescopic extension | None |
| Boom configuration | Single boom |
| Crane weight | 550 kg |
COMPATIBLE EQUIPMENT & OPTIONS
Configure the FC53 with a compatible Forester trailer, grapple, rotator and control system according to the tractor, hydraulic supply and intended work.
Compatible Trailers
Grapples
Select by crane capacity.
Rotators
Models to be confirmed by engineering.
Crane Control Systems
Models to be confirmed by engineering.
Hydraulic Equipment
Selection by pressure, flow and duty cycle.
Equipment & Options
PRODUCT FAQ
What are the reach and lifting capacity of the FC-53 Forestry Crane?
The FC-53 Forestry Crane provides an outreach of 5.30 m. The full specification is listed in the table on this page.
Which trailers can the crane be mounted on?
The crane mounts on Forester forestry trailers of matching capacity. We will recommend a trailer-and-crane configuration for your tractor.
Which grapple and rotator should I choose?
The crane works with Forester FG-series log grapples and hydraulic rotators. Grapple size is matched to the crane capacity and the timber you handle.
Does it have hydraulic brakes and support legs?
The standard equipment is listed in the specification table. Available options are shown in the Equipment & Options section; the exact configuration is confirmed with your request.
Will the equipment work with my tractor?
Forester equipment runs on the tractor's hydraulic system. Send us your tractor model and a description of the work — we will confirm compatibility and suggest a configuration.
How can I get a price for the FC-53 Forestry Crane?
Use the request form on this page — we will reply with the price, available configuration and delivery terms.
What warranty applies to the equipment?
Forester equipment is covered by the manufacturer's warranty. The exact warranty and service terms are provided with your request.
Request a Quote
Interested in the FC-53 Forestry Crane? Fill in the form and our specialists will contact you to calculate the cost and delivery times.
CERTIFICATES & STANDARDS
CE
Equipment conforms to European Union safety and health directives.
ISO 9001
Manufacturing certified to ISO 9001 quality management standard.
Strenx 700 Steel
SSAB Strenx 700 high-strength steel — up to +40% strength at lower weight.
Made in European Union
Designed and manufactured in Estonia. Full material traceability.
