A 10-ton forestry trailer with an extendable loading area, hydraulic brakes and support legs, designed for timber transport with compatible Forester cranes.
FC-53 Forestry Crane
FT-10 · 10 t
Forest Trailers
FT-10 Forestry Trailer
- Payload 10 000 kg
- Loading area 2.3 m²
- Length of loading area 4 300 / 5 275 mm
- Overall width 2 150 mm
- Compatible Cranes FC-53, FC-67L, FC-67, FC-72
10-TON CAPACITY FOR PROFESSIONAL TIMBER TRANSPORT
The FT-10 is a forestry trailer designed for timber transport and operation with a mounted forestry crane. Its 10,000 kg payload, 2.3 m² loading area and extendable loading length allow it to accommodate different timber lengths and working requirements.
With an overall width of 2,150 mm and a trailer weight of 1,100 kg, the FT-10 combines substantial carrying capacity with relatively compact dimensions. Hydraulic brakes, support legs and a frame extension form part of the specification. The trailer can be configured with the Forester FC-53, FC-67L, FC-67 or FC-72 crane.
DESIGN HIGHLIGHTS
10,000 KG PAYLOAD
Provides the carrying capacity required for professional timber transport.
EXTENDABLE LOADING LENGTH
The loading area extends from 4,300 to 5,275 mm to accommodate different timber lengths.
HYDRAULIC BRAKES AND SUPPORT LEGS
Hydraulic braking supports controlled transport, while the support legs stabilise the trailer during crane operation.
FOUR COMPATIBLE FORESTER CRANES
The FT-10 can be configured with the FC-53, FC-67L, FC-67 or FC-72 according to the required reach and lifting capacity.
GALLERY
SPECIFICATIONS · FT-10 FORESTRY TRAILER
| Model | FT-10 |
|---|---|
| Load capacity | 10 000 kg |
| Loading area | 2.3 m² |
| Axle section | 70x70 mm |
| Frame section | (160x80x8) mm |
| Tyre size | 400/60-15.5 |

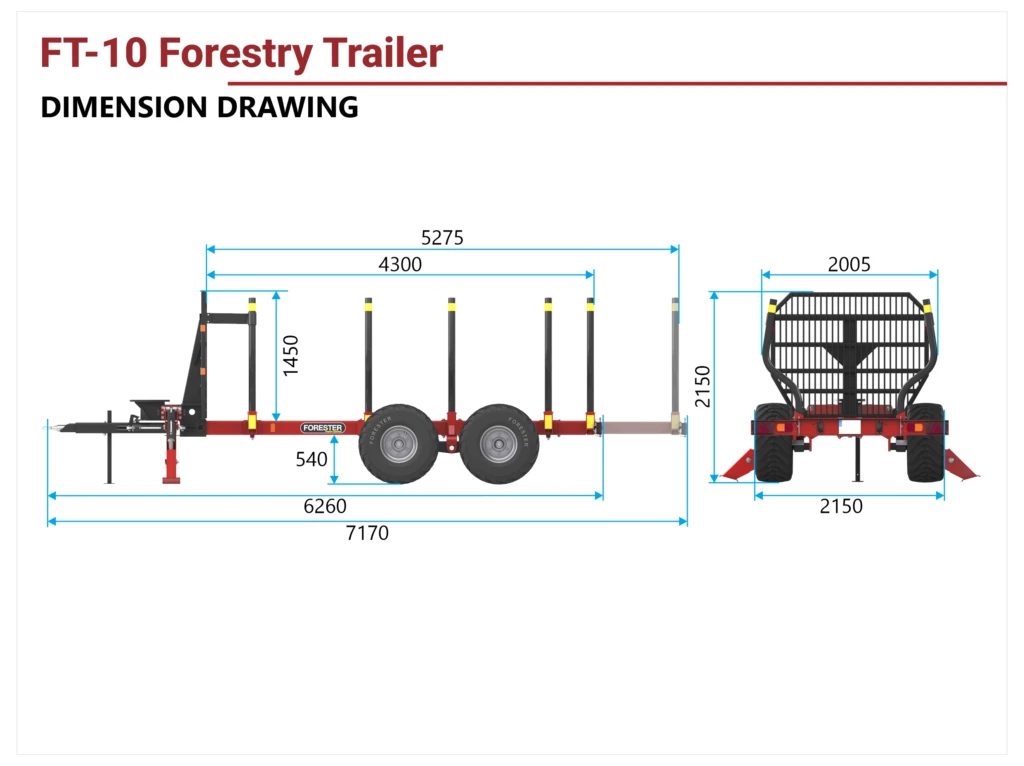

| Length of loading area | 4 300 / 5 275 mm |
| Total length | 6 260 / 7 170 mm |
| Overall width | 2 150 mm |
| Trailer weight | 1 100 kg |
| Hydraulic brakes | + |
| Support legs | + |
| Frame extension | + |
| Compatible Cranes | FC-53, FC-67L, FC-67, FC-72 |
COMPATIBLE EQUIPMENT & OPTIONS
Configure the FT-10 with a compatible Forester crane according to the required reach and lifting capacity.
Compatible Cranes
Equipment & Options
PRODUCT FAQ
What is the payload and loading area of the FT-10 Forestry Trailer?
The FT-10 Forestry Trailer has a payload of 10 000 kg, a loading area of 2.3 m². All dimensions and capacities are listed in the specification table on this page.
Which Forester cranes are compatible with the trailer?
The trailer is configured with Forester FC-series cranes. The recommended setup is: FC-53, FC-67L, FC-67, FC-72. We will match the crane to your tractor and workload.
Does it have hydraulic brakes and support legs?
The standard equipment is listed in the specification table. Available options are shown in the Equipment & Options section; the exact configuration is confirmed with your request.
Will the equipment work with my tractor?
Forester equipment runs on the tractor's hydraulic system. Send us your tractor model and a description of the work — we will confirm compatibility and suggest a configuration.
How can I get a price for the FT-10 Forestry Trailer?
Use the request form on this page — we will reply with the price, available configuration and delivery terms.
What warranty applies to the equipment?
Forester equipment is covered by the manufacturer's warranty. The exact warranty and service terms are provided with your request.
Request a Quote
Interested in the FT-10 Forestry Trailer? Fill in the form and our specialists will contact you to calculate the cost and delivery times.
