A 9,000 kg forestry trailer with an extendable loading platform, hydraulic steering drawbar and 540 mm ground clearance.
FC-53 Forestry Crane
FT-9 · 9 t
Forest Trailers
FT-9 Forestry Trailer
- Payload 9 000 kg
- Loading area 2.1 m²
- Length of loading area 3 435 / 4 220 mm
- Ground clearance 540 mm
9-TONNE CAPACITY FOR EVERYDAY TIMBER TRANSPORT
The FT9 is a forestry trailer with a 9,000 kg payload, designed for timber loading and transport. Its extendable loading platform, hydraulic steering drawbar and 540 mm ground clearance support efficient work on narrow forest roads and uneven terrain.
The trailer is fitted with eight stakes arranged in four pairs, including those mounted on the telescopic extension. The extendable frame increases the loading length from 3,435 to 4,220 mm.
The FT9 can be paired with compatible Forester cranes and configured with suitable braking and hydraulic options to match the customer’s tractor, working conditions and scale of operation. Final technical compatibility is confirmed for each configuration.
DESIGN HIGHLIGHTS
9,000 KG PAYLOAD
The FT9 provides a payload capacity of 9,000 kg for everyday timber loading and transport.
EXTENDABLE LOADING PLATFORM
The frame increases the loading length from 3,435 to 4,220 mm. Eight stakes are arranged in four pairs across the fixed and telescopic sections of the platform.
HYDRAULIC STEERING DRAWBAR
Hydraulic steering helps the trailer follow the tractor through narrow forest roads and confined working areas.
540 MM GROUND CLEARANCE
A ground clearance of 540 mm supports movement across uneven forest terrain and obstacles.
GALLERY
Video

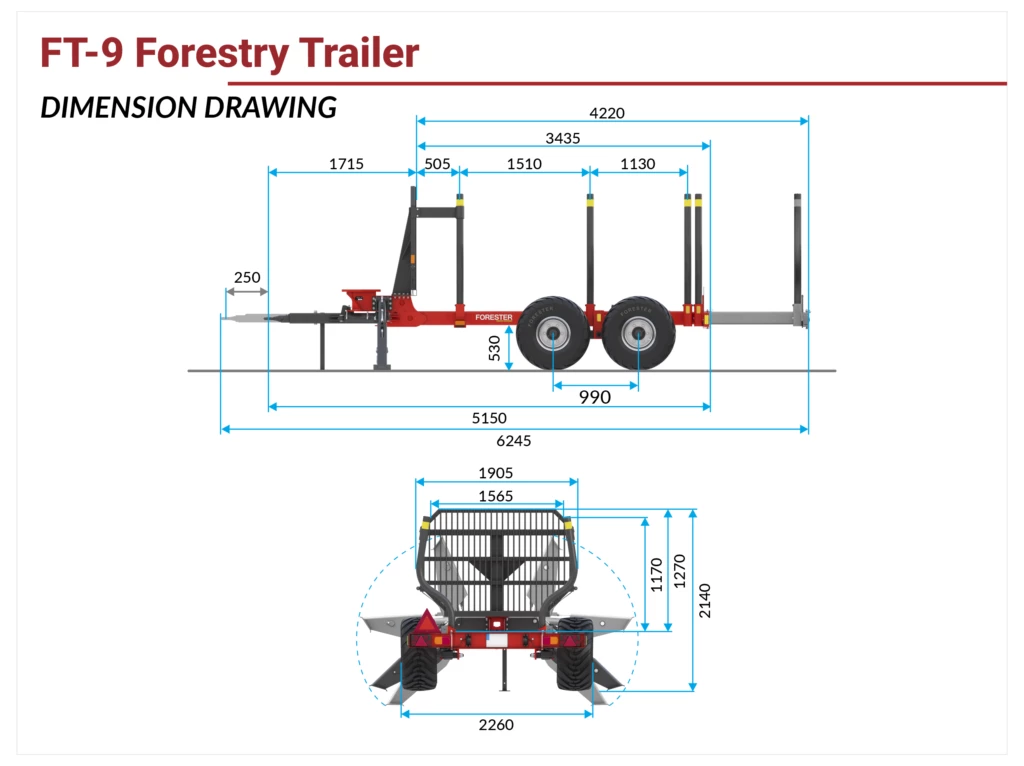

SPECIFICATIONS · FT-9 FORESTRY TRAILER
| Model | FT-9 |
|---|---|
| Payload | 9 000 kg |
| Loading area | 2.1 m² |
| Loading length | 3 435 / 4 220 mm |
| Ground clearance | 540 mm |
| Overall width | 2 260 mm |
| Trailer weight | 1 450 kg |
| Axle section | 70 × 70 mm |
| Frame section | 160 × 160 × 8 mm |
| Tyres | 400/60-15.5 |
| Stakes | 8, arranged in 4 pairs |
| Frame extension | Yes |
| Hydraulic steering drawbar | Yes |
| Support legs | Yes |
| Compatible cranes | FC-53, FC-67L, FC-67, FC-72 |
COMPATIBLE EQUIPMENT & OPTIONS
Configure the FT9 for your tractor and working conditions.
Compatible Cranes
Compatibility per the official Forester chart.
Braking System
Selected by tractor and local registration requirements.
Hydraulic Supply
Selected by tractor and working conditions.
Additional Trailer Equipment
Support legs, frame extension and other options on request.
Equipment & Options
PRODUCT FAQ
What is the payload and loading area of the FT-9 Forestry Trailer?
The FT-9 Forestry Trailer has a payload of 9 000 kg, a loading area of 2.1 m². All dimensions and capacities are listed in the specification table on this page.
Which Forester cranes are compatible with the trailer?
The trailer is designed for Forester FC-series cranes — selected by required reach and lifting capacity.
Does it have hydraulic brakes and support legs?
The standard equipment is listed in the specification table. Available options are shown in the Equipment & Options section; the exact configuration is confirmed with your request.
Will the equipment work with my tractor?
Forester equipment runs on the tractor's hydraulic system. Send us your tractor model and a description of the work — we will confirm compatibility and suggest a configuration.
How can I get a price for the FT-9 Forestry Trailer?
Use the request form on this page — we will reply with the price, available configuration and delivery terms.
What warranty applies to the equipment?
Forester equipment is covered by the manufacturer's warranty. The exact warranty and service terms are provided with your request.
Request a Quote
Interested in the FT-9 Forestry Trailer? Fill in the form and our specialists will contact you to calculate the cost and delivery times.
CERTIFICATES & STANDARDS
CE
Equipment conforms to European Union safety and health directives.
ISO 9001
Manufacturing certified to ISO 9001 quality management standard.
Strenx 700 Steel
SSAB Strenx 700 high-strength steel — up to +40% strength at lower weight.
Made in European Union
Designed and manufactured in Estonia. Full material traceability.
